Description

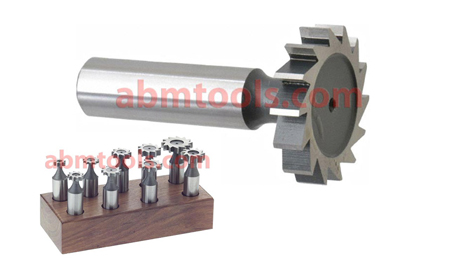

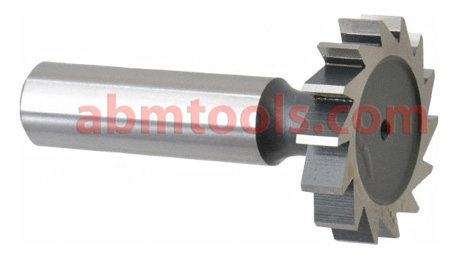

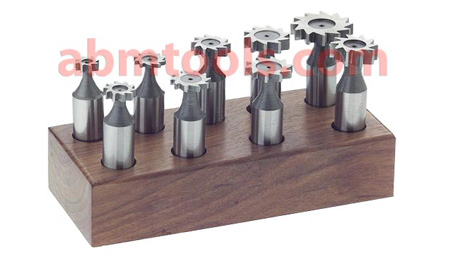

Woodruff Key Slot Cutter and Woodruff Key Seat Cutter
• The woodruff key seat cutter is a circular cutter integral with a parallel shank for holding and driving having definite diameter and width with sides slightly concave designed for cutting seating in shafts for woodruff keys.
• Available in HSS M2 quality.
• Woodruff-Style Narrow-Width Slotting Cutters are popular in small engine manufacturing and automotive companies where a narrow width slot is necessary. Engineered specials available upon request.
Specification Conform to IS 2669-1971 / DIN 850
Sizes in mm
| Item code No. | Dia. mm | Width mm | Dia Shank mm | Overall length | Woodruff Key to IS 2294 |
|---|---|---|---|---|---|
| ABM-CT-13090 | 10.5 | 2 | 6 | 50 | 2 x 3.7 |
| ABM-CT-13091 | 10.5 | 2.5 | 6 | 50 | 2.5 x 3.7 |
| ABM-CT-13092 | 10.5 | 3 | 6 | 50 | 3 x 3.7 |
| ABM-CT-13093 | 13.5 | 3 | 10 | 56 | 3 x 5 |
| ABM-CT-13094 | 13.5 | 4 | 10 | 56 | 4 x 5 |
| ABM-CT-13095 | 16.5 | 3 | 10 | 56 | 3 x 6.5 |
| ABM-CT-13096 | 16.5 | 4 | 10 | 56 | 4 x 6.5 |
| ABM-CT-13097 | 16.5 | 5 | 10 | 56 | 5 x 6.5 |
| ABM-CT-13098 | 19.5 | 4 | 10 | 56 | 4 x 7.5 |
| ABM-CT-13099 | 19.5 | 5 | 10 | 56 | 5 x 7.5 |
| ABM-CT-13100 | 19.5 | 6 | 10 | 63 | 6 x 7.5 |
| ABM-CT-13101 | 22.5 | 5 | 10 | 63 | 5 x 9 |
| ABM-CT-13102 | 22.5 | 6 | 10 | 63 | 6 x 9 |
| ABM-CT-13103 | 22.5 | 8 | 10 | 63 | 8 x 9 |
| ABM-CT-13104 | 25.5 | 6 | 10 | 63 | 6 x 10 |
| ABM-CT-13105 | 28.5 | 6 | 10 | 63 | 6 x 11 |
| ABM-CT-13106 | 28.5 | 8 | 10 | 63 | 8 x 11 |
| ABM-CT-13107 | 28.5 | 10 | 12 | 71 | 10 x 11 |
| ABM-CT-13108 | 32.5 | 8 | 10 | 63 | 8 x 13 |
| ABM-CT-13109 | 32.5 | 10 | 12 | 71 | 10 x 13 |
| ABM-CT-13110 | 45.5 | 10 | 12 | 71 | 10 x 16 |
Specification Conform to BS 122 – 1953 Part 1
Sizes in inches
| Item code No. | BS Cutter & Key No. | Dia of Cutter (Min) | Width of Cutter | Overall length | Dia of Shank |
|---|---|---|---|---|---|
| ABM-CT-13130 | 204 | 0.505 | 0.061 | 2 | 1/2 |
| ABM-CT-13131 | 304 | 0.505 | 0.093 | 2 | 1/2 |
| ABM-CT-13132 | 404 | 0.505 | 0.124 | 2 | 1/2 |
| ABM-CT-13133 | 305 | 0.630 | 0.093 | 2 | 1/2 |
| ABM-CT-13134 | 405 | 0.630 | 0.124 | 2 | 1/2 |
| ABM-CT-13135 | 505 | 0.630 | 0.155 | 2 | 1/2 |
| ABM-CT-13136 | 406 | 0.755 | 0.124 | 2-1/4 | 1/2 |
| ABM-CT-13137 | 506 | 0.755 | 0.155 | 2-1/4 | 1/2 |
| ABM-CT-13138 | 606 | 0.755 | 0.187 | 2-1/4 | 1/2 |
| ABM-CT-13139 | 507 | 0.880 | 0.155 | 2-1/2 | 1/2 |
| ABM-CT-13140 | 607 | 0.880 | 0.187 | 2-1/2 | 1/2 |
| ABM-CT-13141 | 807 | 0.880 | 0.249 | 2-1/2 | 1/2 |
| ABM-CT-13142 | 608 | 1.005 | 0.187 | 2-3/4 | 1/2 |
| ABM-CT-13143 | 808 | 1.005 | 0.249 | 2-3/4 | 1/2 |
| ABM-CT-13144 | 1008 | 1.005 | 0.311 | 2-3/4 | 1/2 |
| ABM-CT-13145 | 609 | 1.130 | 0.187 | 2-3/4 | 1/2 |
| ABM-CT-13146 | 809 | 1.130 | 0.249 | 2-3/4 | 1/2 |
| ABM-CT-13147 | 1009 | 1.130 | 0.311 | 2-3/4 | 1/2 |
| ABM-CT-13148 | 810 | 1.255 | 0.249 | 2-3/4 | 1/2 |
| ABM-CT-13149 | 1010 | 1.255 | 0.311 | 2-3/4 | 1/2 |
| ABM-CT-13150 | 1210 | 1.255 | 0.374 | 2-3/4 | 1/2 |
| ABM-CT-13151 | 1011 | 1.380 | 0.311 | 3 | 1/2 |
| ABM-CT-13152 | 1211 | 1.380 | 0.374 | 3 | 1/2 |
| ABM-CT-13153 | 812 | 1.505 | 0.249 | 3 | 1/2 |
| ABM-CT-13154 | 1012 | 1.505 | 0.311 | 3 | 1/2 |
| ABM-CT-13155 | 1212 | 1.505 | 0.374 | 3 | 1/2 |
