Description
• Hardened alloy steel bushings are interchangeable as standard to fit different Drill sizes & for a minimum break drill.

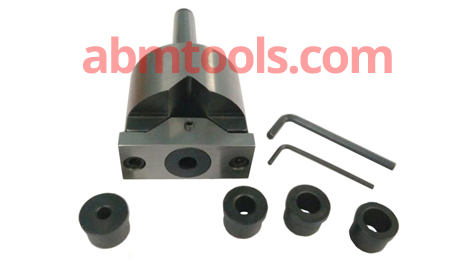

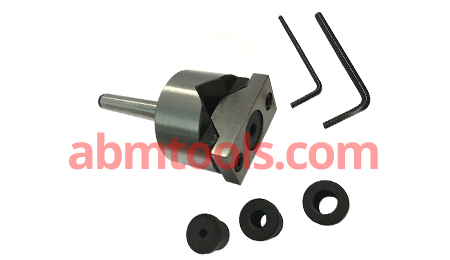

• Quality V-Adapter For Lathe’s Tailstock in MT Shank
• Minimum Round Bar Diameter that can be clamped in the Vee is 5 mm & maximum diameter is 40 mm
• Interchangeable Alloy Steel Hardened Bushes are supplied to adapt different drill sizes & to ensure minimum drill breakage.
| Item Code No. | Shank | Head Diameter | Holding Capacity | Bush |
|---|---|---|---|---|
| ABM-IMT-8015 | MT1 | 50mm | Minimum 5mm Maximum 30mm | 4, 6, 8, 10 & 12 mm |
| ABM-IMT-8016 | MT2 | 62mm | Minimum 8mm Maximum 40mm | 6, 8, 10, 12, 14 & 16 mm |
| ABM-IMT-8017 | MT3 | 62mm | Minimum 8mm Maximum 40mm | 6, 8, 10, 12, 14 & 16 mm |
