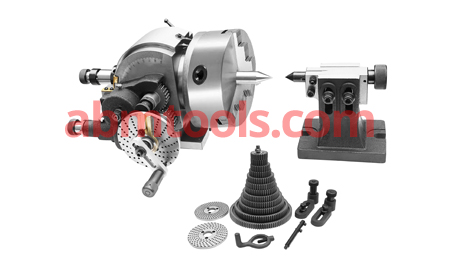

Universal Dividing Head, which is apt for easy indexing of divisions. This machine is designed for all types of gear cutting operations. The worm and spindle in the machine are hardened and ground and has features of spiral machining capability. The Universal Dividing Head allows the customer to divide in any angle by the direct, indirect or differential methods with unique dividing head.

Loading...

Description

  • Dividing heads are carefully designed for tool Rooms as well as for production purpose.
  • They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.
  • These dividing heads are manufactured from Selected high quality material with Superior workmanship.



Item Code No.ABM-VC-11346
Size Inches8"

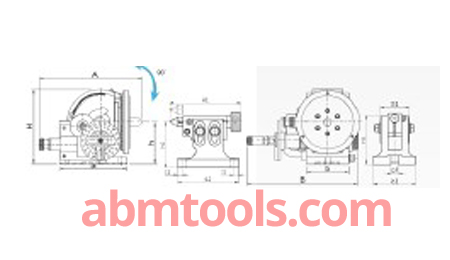

Dimensions in mm
A359
B340
H235
I20
a212
b135
g16
h134
Taper of centerMT-4
Spindle Through Hole25
