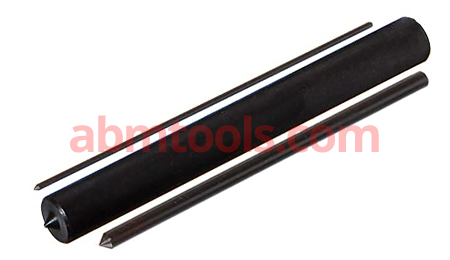

Transfer punch is a punch of a specific outer diameter that is non-tapered and extends the entire length of the punch . It is used to tightly fit the tolerances of an existing hole and, when struck, precisely transfer the center of that hole to another surface. It can be used, to duplicate the hole patterns in a part, or precisely set locations for threaded holes to bolt an object to a surface.

Loading...

Description

A transfer punches is a punch (usually in an index set) of a specific outer diameter and extends the entire length of the punch (except for the tip). Transfer punches, used to tightly fit the tolerances of an existing hole and, when struck, precisely transfer the center of that hole to another surface.

This transfer punch makes it easy to perfectly align holes when manufacturing components. Made from durable carbon steel with hardened working ends these punches stand up to repeated use. The punch set comes with a handy storage case for easy organization.

ITEM CODE NO. ABM-PN-10110
• Set  of  28 Punches
• Length 4-7/8”
• Size Ranging From 3/32” To 17/32”   (3/32 – 1/2 x 64ths  & 17/32)
• Ideally Suitable For Tool Maker’s & Machinist.
• Eliminates the guesswork when transferring threaded, drilled, or reamed holes

• Heat Treated and Tempered.
• Black Oxidized Finish.
