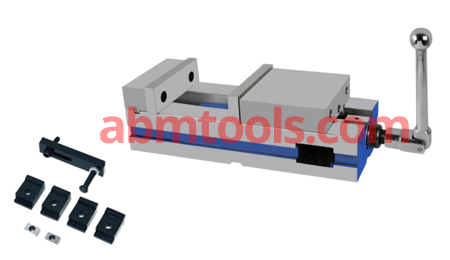

Description
• This vice can be clamped vertical or either side.
• High clamping force can be achieve by effortless handle movement which eliminates hammering on handle.
• Hardened jaws maintain accuracy for long time.
• Enhanced body Structure reduces the deflection in operation while the vice mounted vertical or horizontal.
• Ductile iron body.
• Sealed bearing system reduces clamping pressure and increases bearing life.
• Accuracy in parallelism & squareness with in 0.02/100mm
• No work piece tilt after clamping.
• All parts are interchangeable.
• Tenon and tenon slots provided for effortless truing of vice.
• Supplied with stopper for fast production
| Item code No. | ABM-VC-11455 |
|---|---|
| Size in Inches | 6 Inch (150 mm) |
| Width of Jaws mm | 150 |
| Max Opening with Standard Jaw Reversed | 200 |
| Max Jaw Opening with Jaw Reversed | 430 |
| Depth of Jaws mm | 45 |
| Overall Length mm | 515 |
| Overall Height mm | 125 |
| Tenon Slot Size mm | 35 |
| Weight Approx Kg. | 20 |
