Description

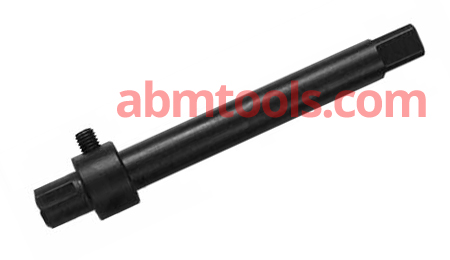

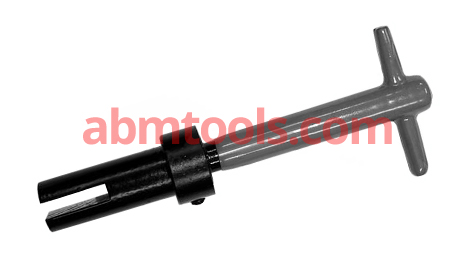

Insertion Tools with break-Off tang
with Adjustment Bush, Square Drive, Allen Screw and with Vinyl Grip
Powder Coated Finish
Material – Alloy Steel
Size – M2 To M33
For Wire Thread Inserts – 1.0D, 1.5D, 2.0D, 2.5D, 3.0D MM
| Item Code No. | Insertion Tool T Type | UNC / UNF | BSW / BSF | Insertion Tool | Break off Tang | Square Drive mm |
|---|---|---|---|---|---|---|
| ABM-TRK-5700 | M5 x 0.8 | UNC/UNF No. 12 | BSF 3/16 | No. 8 | No. 8 | 6.0 |
| ABM-TRK-5701 | M6 x 1.0 | UNC/UNF No. 1/4 | BSW/BSF 1/4 | No. 9 | No. 9 | 6.3 |
| ABM-TRK-5702 | M7 x 1.0 | UNC 5/16 | BSW 5/16 | No. 10 | No. 10 | 6.3 |
| ABM-TRK-5703 | M8 x 1.25 | UNF 5/16 | BSF 5/16 | No. 11 | No. 11 | 6.3 |
| ABM-TRK-5704 | M8 x 1.0 | xx | xx | No. 11 | No. 11 | 6.3 |
| ABM-TRK-5705 | M9 x 1.25 | UNC 3/8 | BSW 3/8 | No. 12 | No. 12 | 6.3 |
| ABM-TRK-5706 | M10 x 1.5 | UNF 3/8 | BSF 3/8 | No. 13 | No. 13 | 8.0 |
| ABM-TRK-5707 | M10 x 1.25 | UNF 3/8 | BSF 3/8 | No. 13 | No. 13 | 8.0 |
| ABM-TRK-5708 | M10 x 1.0 | xx | xx | No. 13 | No. 13 | 8.0 |
| ABM-TRK-5709 | M11 x 1.5 | UNC/UNF 7/16 | xx | No. 14 | No. 14 | 8.0 |
| ABM-TRK-5710 | M11 x 1.25 | xx | BSW/BSF 7/16 | No. 14 | No. 14 | 8.0 |
| ABM-TRK-5711 | M12 x 1.75 | UNC/UNF 1/2 | xx | No. 15 | No. 15 | 9.0 |
| ABM-TRK-5712 | M12 x 1.5 | UNC/UNF 1/2 | xx | No. 15 | No. 15 | 9.0 |
| ABM-TRK-5713 | M12 x 1.25 | xx | BSW/BSF 1/2 | No. 15 | No. 15 | 9.0 |
| ABM-TRK-5714 | M12 x 1.0 | xx | BSW/BSF 1/2 | No. 15 | No. 15 | 9.0 |
| ABM-TRK-5715 | M14 x 1.5 | UNC/UNF 9/16 | xx | No. 16 | No. 16 | 9.0 |
| ABM-TRK-5716 | M14 x 2.0 | xx | BSW/BSF 9/16 | No. 16 | No. 16 | 10.0 |
| ABM-TRK-5717 | M14 x 1.25 | xx | xx | No. 17 | No. 16 | 10.0 |
| ABM-TRK-5718 | M14 x 1.0 | xx | xx | No. 17 | No. 16 | 10.0 |
| ABM-TRK-5719 | M16 x 2.0 | UNC/UNF 5/8 | xx | No. 18 | xx | xx |
| ABM-TRK-5720 | M16 x 1.5 | xx | BSW/BSF 5/8 | No. 18 | xx | xx |
| ABM-TRK-5721 | M18 x 2.5 | UNC 3/4 | xx | No. 20 | xx | xx |
| ABM-TRK-5722 | M18 x 2.0 | xx | BSW/BSF 3/4 | No. 20 | xx | xx |
| ABM-TRK-5723 | M18 x 1.5 | UNC 3/4 | xx | No. 20 | xx | xx |
| ABM-TRK-5724 | M20 x 2.5 | UNF 3/4 | xx | No. 21 | xx | xx |
| ABM-TRK-5725 | M20 x 2.0 | xx | xx | No. 21 | xx | xx |
| ABM-TRK-5726 | M20 x 1.5 | UNC 3/4 | xx | No. 21 | xx | xx |
| ABM-TRK-5727 | M22 x 2.5 | UNC/UNF 7/8 | xx | No. 22 | xx | xx |
| ABM-TRK-5728 | M22 x 2.0 | xx | BSW/BSF 7/8 | No. 22 | xx | xx |
| ABM-TRK-5729 | M22 x 1.5 | UNC/UNF 7/8 | xx | No. 22 | xx | xx |
| ABM-TRK-5730 | M24 x 3.0 | UNC/UNF 1 | xx | No. 23 | xx | xx |
| ABM-TRK-5731 | M24 x 2.0 | xx | BSW/BSF 1 | No. 24 | xx | xx |
| ABM-TRK-5732 | M24 x 1.5 | UNC/UNF 1 | xx | No. 25 | xx | xx |
| ABM-TRK-5733 | M27 x 2.5 | xx | xx | No. 26/27 | xx | xx |
| ABM-TRK-5734 | M33 x 3.0 | xx | xx | No. 30/33 | xx | xx |
