Ever wondered why you get a slight  taper when turning over a long distance.  Its usually because your tailstock is not in line. To eliminate this the test bar fits between  your head stock -tailstock. Unit is hardened and ground parallel and centered at both ends.

Loading...

Description

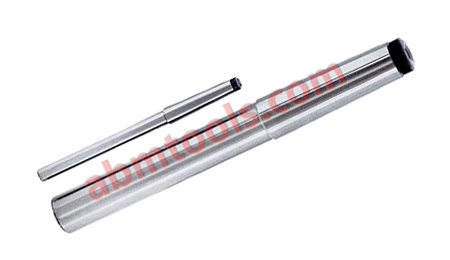

TEST MANDRELS / TEST BARS
TAPER TEST MANDRELS
PARALLEL TEST MANDRELS
•  Manufactured to high precision from alloy steel and heat treated a hardness of 62HRC  + 2 HRC.
•  Each piece is inspected for concentricity within 0.0001”  and parallelism.
•  Useful for alignment test between centers as well as in Morse  Taper spindles.
•  A Must tool in workshop for testing Lathe Machines.
•  Fits between headstock and tailstock.

The Inspection Mandrels are used for checking the alignment of machine Spindle axis.
A Mandrel with a tapered shank serves to represent materially an axis of rotation, so that the axis can be checked for alignment.
A Mandrel mounted between centers provides a reference straight – line joining the two points ( centers ), so as to check the alignment of the centers.

Taper Test Mandrels

Item Code No.
Taper Test Mandrels
ShankSize InchSize mm
ABM-IMT-4000MT16"150
ABM-IMT-4001MT211-1/8"283
ABM-IMT-4002MT313-3/16"335
ABM-IMT-4003MT415-1/4"386
ABM-IMT-4004MT517-1/2"442
ABM-IMT-4005MT619-7/8"505
ABM-IMT-4006ISO 4012"300
ABM-IMT-4007ISO 5012"300
Other sizes and Large sizes on request

Parallel Test Mandrels

Item Code No.
Parallel Test Mandrels
Shank mmSize mm
ABM-IMT-851040 mm300 mm
ABM-IMT-851140 mm500 mm
ABM-IMT-851240 mm600 mm
ABM-IMT-851350 mm300 mm
ABM-IMT-851450 mm500 mm
ABM-IMT-851550 mm600 mm
ABM-IMT-851660 mm300 mm
ABM-IMT-851760 mm500 mm
ABM-IMT-851860 mm600 mm
ABM-IMT-851980 mm750 mm
ABM-IMT-852080 mm900 mm
ABM-IMT-852180 mm1000 mm
ABM-IMT-8522100 mm1200
Other sizes and Large sizes on request
