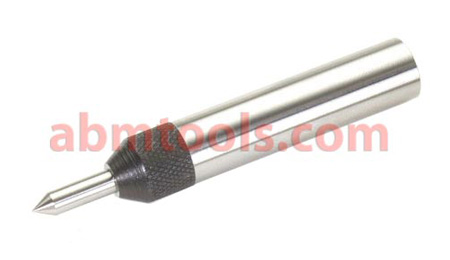

Start every tap straight with this tool. Hardened shank and tension pin. Adjustable tension spring. Reversible tension pin for male and female hole centering.

Loading...

Description

ITEM CODE NO.  ABM-IMT-4715

•  Knurled for easy handling.
•  1/2” Dia. Hardened Shank.
•  3/16” Dia. Hardened Tension Pin.
•  Adjustable Tension Spring.  Spring loaded Mechanism.
•  Reversible Tension Pin for Male and Female hole  centering of Tap.
•  With this tool you start every tap straight.
•  Packed in an attractive Plastic pouch.
•  A tap guides accurately guide hand tapped threads on the inside of a hole to accept a machine screw or bolt. If you start every hole straight, it will help prevent tap breakage and increase the tap life.
•  The pointed end guides a tap or tap wrench directly as it fits into the hole on the end of tap / tap wrench. The reversed concave end is good for smaller taps which usually have a 60° taper ground at the end.
