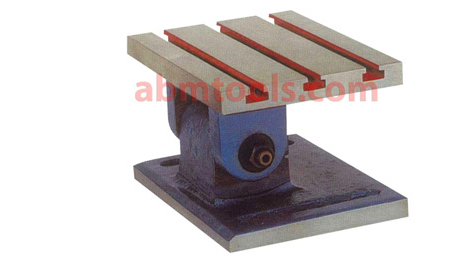

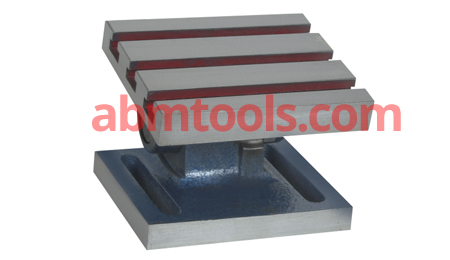

Description
• Heavy duty Cast Iron
• Graduated 0 – 90° Range.
• Precision Ground Table Surface.
• Machined T-Slots.
• 2 Screw locks provided for setting purposes.
• The swiveling face in the swivel angle plates is provided with T-slots machined from solid. Other face is provided with as cast cored slots for clamping the angle plate on machine table.
Item Code No. | Table Size Inch | Table Size mm | Approx Height |
---|---|---|---|
ABM-VC-11500 | 5 x 6 | 125 x 150 | 110 |
ABM-VC-11501 | 6 x 8 | 150 x 200 | 130 |
ABM-VC-11502 | 8 x 10 | 200 x 250 | 165 |
ABM-VC-11503 | 10 x 12 | 250 x 300 | 210 |
ABM-VC-11504 | 12 x 15 | 300 x 375 | 230 |
