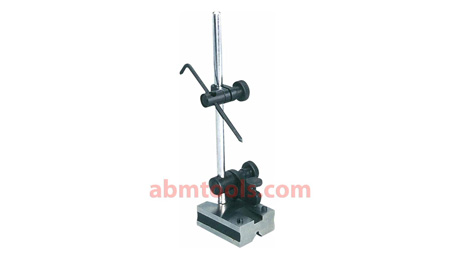

A surface gauge is very useful when finding the center of a piece of round section material. It is normally used to ‘scribe’ parallel lines. Its base is heavy and this means it is stable when in used. Surface gaugegauge consisting of a scriber mounted on an adjustable stand; used to test the accuracy of plane surfaces



Loading...

Description

Also Known as Surface Gauge Toolmaker’s

• Basic tool for machinist and toolmakers for accurately scribing line,  transferring measurements and probing during inspection work.
• Polished and hardened steel base with double ended scriber.
• Bottom V. Grooved allows the gauge to be used conveniently on curved or cylindrical surfaces.
• Front recessed for depressing spindle below base line can be locked  to any angle fine adjustment.
• Has a fine adjustments for precise angular movement and hard scriber point.
• Base has 2 retractable Pins/Gauge to set against edge of a surface plate.
• 1/4” (6.35 mm) hole drilled on adjustment knob for positioning a dial  indicator.
• Can be used on flat or round surfaces.
• Fully hardened & ground base, which serves as an accurate reference surface.
• Adjustable spindle with scriber that can be rigidly secured at any position on the spindle.



Item Code No.Base Dia. InchBase Dia. mmLength of
Spindle Inch
Length of
Spindle mm
Dia of Spindle
Inch
Dia of Spindle
mm
ABM-EPT-95002-3/16 x 1-5/8 x 3/4 55 x 40 x 204 & 7100 & 1751/46.3
ABM-EPT-95013-1/4 x 2-1/2 x 182 x 63 x 259 & 12225 & 3003/89.5
ABM-EPT-95024 x 3-1/2 x 1-1/8100 x 90 x 3012 & 18300 & 4503/89.5
ABM-EPT-95033-1/4 x 2-1/2 x 182 x 63 x 2592253/89.5
ABM-EPT-95043-1/4 x 2-1/2 x 182 x 63 x 25123003/89.5
