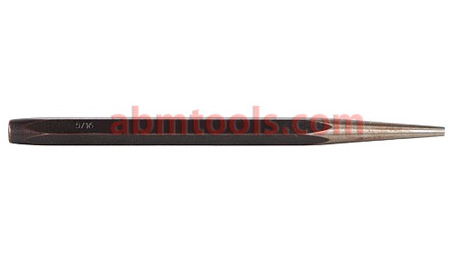

Heavier, shorter body and wider point than drift punch. Modified parabolic struck end for greater resistance to mushrooming and chipping. For installing pins and rivets and for starting their removal.  These Punches are used as a starting tool prior to using Pin Punches, as they are useful for loosening frozen or tight pins and keys, or knocking out rivets.

Loading...

Description

• Starting punch is similar to a drift punch, but with a wider point and a shorter, heavier body.
• Use for installing pins and rivets and for starting their removal.
• These Punches are used as a starting tool prior to using Pin Punches, as they are useful for loosening frozen or tight pins and keys, or knocking out rivet.
• Application to align holes in two or more pieces of metal through which a bolt or screw inserted.
• Enamel painted body with polished working ends.
• Made from high quality Carbon Steel.
• Accurately hardened and tempered.
• Suitable for installing pins & rivets and for starting their removal.
• One-piece design for strength and durability.

Item Code No.Point SizeStock SizeTaper SizeLength
ABM-PN-100901/16” (1.6 mm)3/8” (10 mm)1-3/4” (45 mm)5” (125 mm)
ABM-PN-100913/32” (2.4 mm)3/8” (10 mm)1-3/4” (45 mm)5” (125 mm)
ABM-PN-100921/8” (3.2 mm)3/8” (10 mm)1-3/4” (45 mm)5” (125 mm)
ABM-PN-100935/32” (4.0 mm)3/8” (10 mm)2-1/4” (57 mm)5” (125 mm)
ABM-PN-100943/16” (4.8 mm)3/8” (10 mm)2-1/4” (57 mm)5” (125 mm)
ABM-PN-100957/32” (5.5 mm)3/8” (10 mm)2-1/4” (57 mm)5-1/2” (137 mm)
ABM-PN-100961/4” (6.3 mm)3/8” (10 mm)2-1/8” (53 mm)5” (125 mm)
ABM-PN-100975/16” (8.0 mm)1/2” (12 mm)2” (50 mm)6” (150 mm)
ABM-PN-100983/8” (9.5 mm)5/8” (16 mm)2-1/4” (57 mm)6-1/2” (163 mm)
ABM-PN-100991/2” (12.0 mm)5/8” (16 mm)2-1/3” (63 mm)7” (175 mm)
