The operation is performed for producing indentations on a part of a workpiece. Knurling allows hands or fingers to get a better grip on the knurled object than would be provided by the originally smooth metal surface.

Loading...

Description

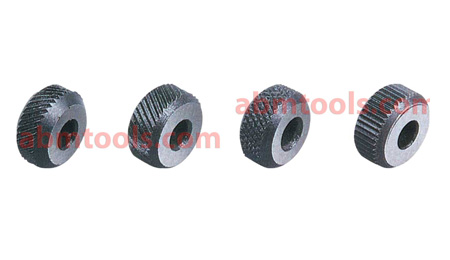

• Available in  Tool Steel Knurls  & HSS Knurls.
• Knurls are individually cut to obtain sharp, perfectly formed  teeth.

• Heat Treated, Tempered and Tested.
• Knurls are finished in pairs to fit all standard makes of knurling  Tools.
• Knurls available with us in many shapes like Extra Fine, Medium,  Coarse, Left, Right, Straight and Checkered.
• Diamond pattern knurls are provided as a set of right hand and  Left Hand knurl.
• Machined ground steel in Shiny Black Finish.

Diamond Pattern
Item Code No.
Straight Pattern
Item Code No.
Knurling Dimension
Dia.
Knurling Dimension
Width
Knurling Dimension
Holes
Pitch
ABM-IMT-6500ABM-IMT-65095/8"5/16"7/32"14
ABM-IMT-6501ABM-IMT-65105/8"5/16"7/32"21
ABM-IMT-6502ABM-IMT-65115/8"5/16"7/32"33
ABM-IMT-6503ABM-IMT-65123/4"3/8"1/4"14
ABM-IMT-6504ABM-IMT-65133/4"3/8"1/4"21
ABM-IMT-6505ABM-IMT-65143/4"3/8"1/4"33
ABM-IMT-6506ABM-IMT-65151"3/8"5/16"14
ABM-IMT-6507ABM-IMT-65161"3/8"5/16"21
ABM-IMT-6508ABM-IMT-65171"3/8"5/16"33

While Placing order please mention Tool Steel Knurls or HSS Knurls
