Description

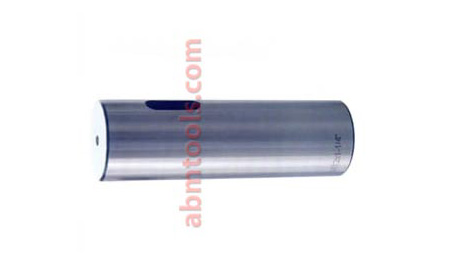

• Solid sockets / turret sockets allows tools with morse taper shank to be held in a chuck, tailstock turret, etc. Heat treated. With Morse Taper Hole and round exterior.
• Straight Shank With Morse Taper Hole.
• Hardened And Ground.
• For Holding MT Shank Tools In Turrets And Automatic Lathes.
• Allow tools with Morse Taper shank to be held in a chuck, tail stock turret, etc.
| Item Code No. Inch Sizes | Item Code No. mm Sizes | Morse Taper Inside Hole | Shank Dia Inch | Shank Dia mm | Shank Length Inch | Shank Length mm |
|---|---|---|---|---|---|---|
| ABM-IMT-4160 | ABM-IMT-4190 | MT 1 | 1 | 25 | 3-1/2 | 88 |
| ABM-IMT-4161 | ABM-IMT-4191 | MT 1 | 1-1/4 | 32 | 3-1/2 | 88 |
| ABM-IMT-4162 | ABM-IMT-4192 | MT 1 | 1-1/2 | 38 | 3-1/2 | 88 |
| ABM-IMT-4163 | ABM-IMT-4193 | MT 2 | 1 | 25 | 4 | 100 |
| ABM-IMT-4164 | ABM-IMT-4194 | MT 2 | 1-1/4 | 32 | 4 | 100 |
| ABM-IMT-4165 | ABM-IMT-4195 | MT 2 | 1-1/2 | 38 | 4 | 100 |
| ABM-IMT-4166 | ABM-IMT-4196 | MT 2 | 1-3/4 | 44 | 4 | 100 |
| ABM-IMT-4167 | ABM-IMT-4197 | MT 2 | 2 | 50 | 4 | 100 |
| ABM-IMT-4168 | ABM-IMT-4198 | MT 3 | 1-1/4 | 32 | 4-3/4 | 120 |
| ABM-IMT-4169 | ABM-IMT-4199 | MT 3 | 1-1/2 | 38 | 4-3/4 | 120 |
| ABM-IMT-4170 | ABM-IMT-4200 | MT 3 | 1-3/4 | 44 | 4-3/4 | 120 |
| ABM-IMT-4171 | ABM-IMT-4201 | MT 3 | 2 | 50 | 4-3/4 | 120 |
| ABM-IMT-4172 | ABM-IMT-4202 | MT 4 | 1-1/2 | 38 | 6 | 150 |
| ABM-IMT-4173 | ABM-IMT-4203 | MT 4 | 1-3/4 | 44 | 6 | 150 |
| ABM-IMT-4174 | ABM-IMT-4204 | MT 4 | 2 | 50 | 6 | 150 |
| ABM-IMT-4175 | ABM-IMT-4205 | MT 5 | 2-1/4 | 57 | 7-3/8 | 176 |
| ABM-IMT-4176 | ABM-IMT-4206 | MT 5 | 2-1/2 | 63 | 7-3/8 | 176 |
| ABM-IMT-4177 | ABM-IMT-4207 | MT 6 | 3-1/4 | 82 | 10-1/8 | 251 |
| ABM-IMT-4178 | ABM-IMT-4208 | MT 6 | 3-1/2 | 88 | 10-1/8 | 251 |
