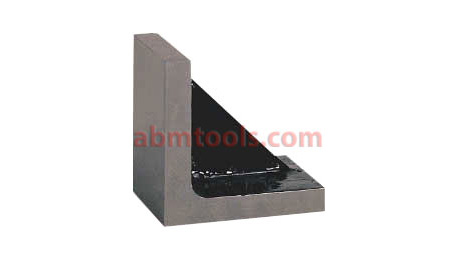

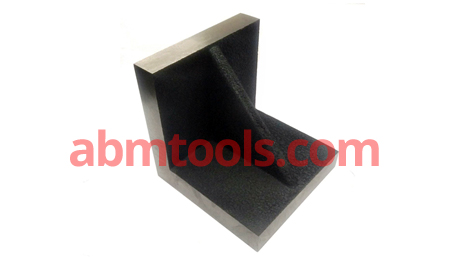

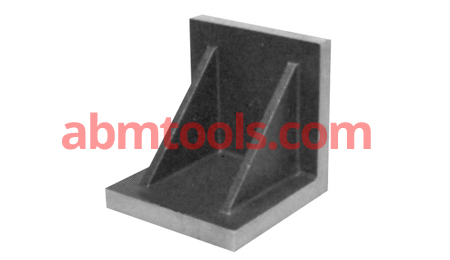

An angle plate is a work holding device used as a fixture in metalworking. The angle plate is made from high quality material (cast iron) that has been stabilized to prevent further movement or distortion.

Loading...

Description

• Made from High quality Casting.
• Castings are properly seasoned to avoid distortion.
• Precision ground sides and Ends.
• As Per BS 5535 Grade B.
• Flatness and Squareness within .002” Per 6” for Machined finish and .001” per 6” for Ground finish.



Machined Finish
Item Code No.
Precision Ground Finish
Item Code No.
No. of RibsSize InchSize mm
ABM-EPT-8950ABM-EPT-895901 x 1 x 125 x 25 x 25
ABM-EPT-8951ABM-EPT-896012 x 2 x 250 x 50 x 50
ABM-EPT-8952ABM-EPT-896113 x 3 x 375 x 75 x 75
ABM-EPT-8953ABM-EPT-896214 x 4 x 4100 x 100 x 100
ABM-EPT-8954ABM-EPT-896315 x 5 x 5125 x 125 x 125
ABM-EPT-8955ABM-EPT-896416 x 6 x 6150 x 150 x 150
ABM-EPT-8956ABM-EPT-896528 x 8 x 8200 x 200 x 200
ABM-EPT-8957ABM-EPT-8966210 x 10 x 10250 x 250 x 250
ABM-EPT-8958ABM-EPT-8967212 x 12 x 12300 x 300 x 300
