Description

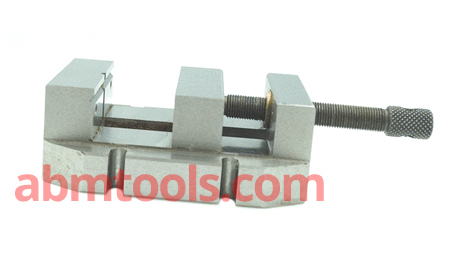

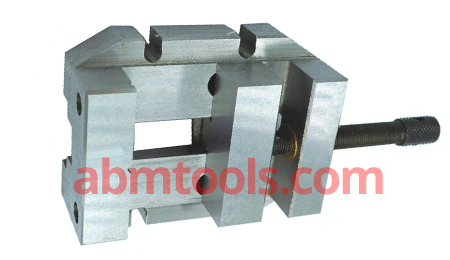

Small Milling Vice suitable for Myford Type Milling Slide for Myford Lathes
This new small machine vice is suitable for many small lathes and ideal for anyone with a Myford milling slide etc.
The fixed jaw has horizontal and vertical vees for ease of use when holding round material.
It can be mounted using either the 2 milled outer slots or the 2 inner drilled holes.
Suitable T nuts included. It can also be used as a standalone vice in either a horizontal or vertical position.
Jaw Width – 60mm
Jaw Opening – 45 mm
Distance between slots – 75mm
Distance Between Holes – 45mm
Overall Height when HZ – 45mm
Overall Height When VT – 110mm (not inc screw)
Footprint when HZ – 110 x 85mm

ITEM CODE NO.    ABM-VC-2290
