Description
• Made of High quality Seasoned castings.
• Precision Ground sides & Ends.
• Accurately machines 90º Degree Square.

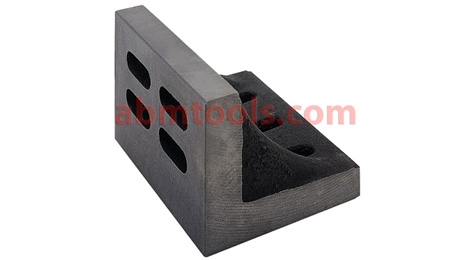

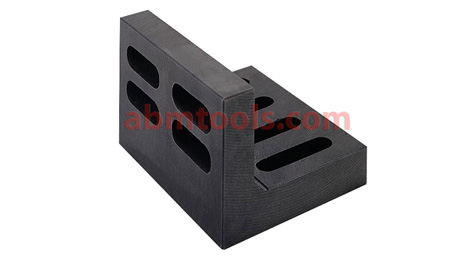

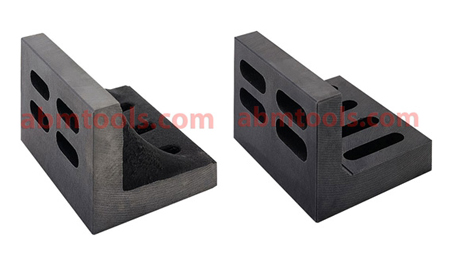

• Available both in Open End and Webbed End Styles.
| Webbed End Item Code No. | Open End Item Code No. | Length | Width | Height |
|---|---|---|---|---|
| ABM-EPT-8880 | -- | 3” / 75 mm | 2-1/2” / 63 mm | 2” / 50 mm |
| ABM-EPT-8881 | -- | 3-1/2” / 90 mm | 3” / 75 mm | 2-1/2” / 63 mm |
| ABM-EPT-8882 | ABM-EPT-8891 | 4-1/2” / 115 mm | 3-1/2” / 90 mm | 3” / 75 mm |
| ABM-EPT-8883 | ABM-EPT-8892 | 6” / 150 mm | 5” / 125 mm | 4-1/2 / 115 mm |
| ABM-EPT-8884 | ABM-EPT-8893 | 7” / 175 mm | 5-1/2” / 140 mm | 4-1/2” / 115 mm |
| ABM-EPT-8885 | ABM-EPT-8894 | 8” / 200 mm | 6” / 150 mm | 5” / 125 mm |
| ABM-EPT-8886 | ABM-EPT-8895 | 9” / 225 mm | 7” / 175 mm | 6” / 150 mm |
| ABM-EPT-8887 | ABM-EPT-8896 | 10” / 250 mm | 8” / 200 mm | 6” / 150 mm |
| ABM-EPT-8888 | ABM-EPT-8897 | 12” / 300 mm | 9” / 225 mm | 8” / 200 mm |
| ABM-EPT-8889 | -- | 16” / 400 mm | 12” / 300 mm | 9” / 225 mm |
| ABM-EPT-8890 | -- | 20” / 500 mm | 16” / 400 mm | 12” / 300 mm |
