Description

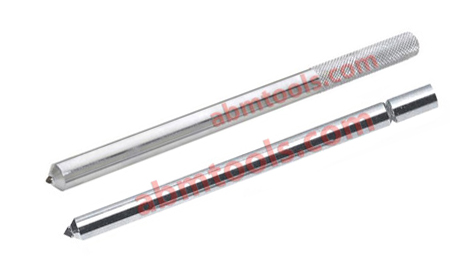

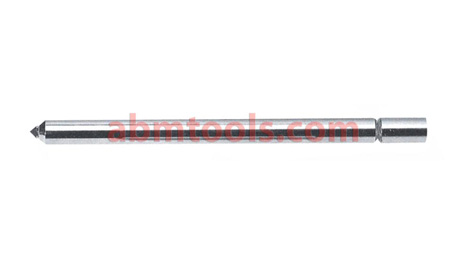

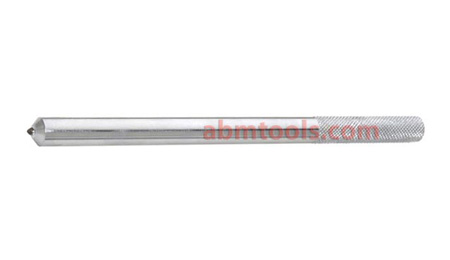

SINGLE POINT DIAMOND DRESSERS
(with and Without Knurled Body)
• High quality Diamonds.
• Can be available in any Shank size on request.
• Mounted on a shank by sintering and is used to true and dress grinding wheels by its sharp cutting edge in order to maintain their performance high for effective and high precision grinding work.
• Available in shank sizes 1/4”, 3/8”, 7/16,” 1/2” and over all length 1-1/2” to 6”
• Ideal tool for dressing wheels for Surface Grinders, Universal Grinders, Cylindrical Grinders, centre less grinders etc.
• Carat size available: 0.16, 0.25, 0.35, 0.50, 0.75, 1.00, 1.25, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 5.00
• Carat Sizes 1/4, 1/3, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 3-1/2, 4 and 5

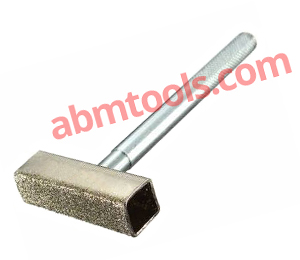

• Also available Multi Point Diamond Dressers.
| Item Code No. Knurled Body | Item Code No. Normal Body | Carat Size |
|---|---|---|
| ABM-IMT-5300 | ABM-IMT-5320 | 0.16 |
| ABM-IMT-5301 | ABM-IMT-5321 | 0.25 |
| ABM-IMT-5302 | ABM-IMT-5322 | 0.35 |
| ABM-IMT-5303 | ABM-IMT-5323 | 0.50 |
| ABM-IMT-5304 | ABM-IMT-5324 | 0.75 |
| ABM-IMT-5305 | ABM-IMT-5325 | 1.00 |
| ABM-IMT-5306 | ABM-IMT-5326 | 1.25 |
| ABM-IMT-5307 | ABM-IMT-5327 | 1.50 |
| ABM-IMT-5308 | ABM-IMT-5328 | 2.00 |
| ABM-IMT-5309 | ABM-IMT-5329 | 2.50 |
| ABM-IMT-5310 | ABM-IMT-5330 | 3.00 |
| ABM-IMT-5311 | ABM-IMT-5331 | 3.50 |
| ABM-IMT-5312 | ABM-IMT-5332 | 4.00 |
| ABM-IMT-5313 | ABM-IMT-5333 | 5.00 |
