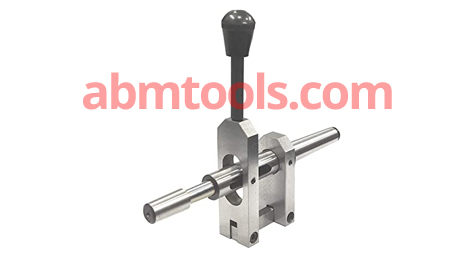

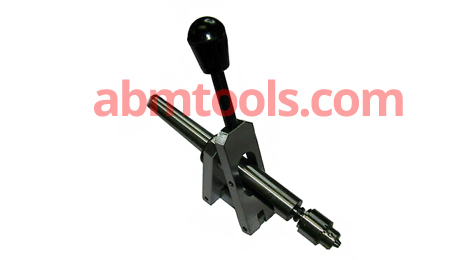

Description
• The manual control on the drilling force helps reducing the breakage in fine holes with high accuracy.
• Can fit to any lathe’s tailstock and is available in 2 & 3 Morse Taper.
• The Front mounting can be provided by us with Taper or Thread for chuck mounting as required by any customer depending on his market needs.
• Shank is precisely ground.
• A Very Handy Tool that enables drilling of Small holes with High Precision
• Drill Can be Moved Easily and Precisely with Lever Mechanism
• Allows approx 25mm (1″) of Travel
• To be used with Drill Chuck either Keyless or Key Type
| Item Code No. | Size |
|---|---|
| ABM-IMT-7910 | MT2 x B16 |
| ABM-IMT-7911 | MT2 x B18 |
| ABM-IMT-7912 | MT2 x B22 |
| ABM-IMT-7913 | MT3 x B16 |
| ABM-IMT-7914 | MT3 x B18 |
| ABM-IMT-7915 | MT3 x B22 |
| ABM-IMT-7916 | MT2 x JT2 |
| ABM-IMT-7917 | MT2 x JT3 |
| ABM-IMT-7918 | MT2 x JT33 |
| ABM-IMT-7919 | MT3 x JT2 |
| ABM-IMT-7920 | MT3 x JT3 |
| ABM-IMT-7921 | MT3 x JT33 |
