Description

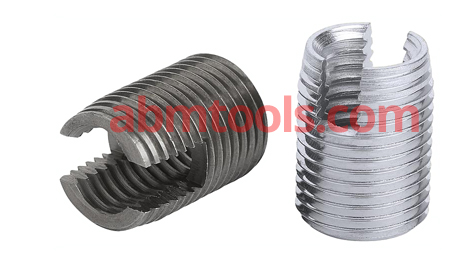

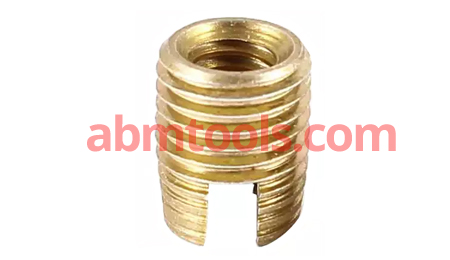

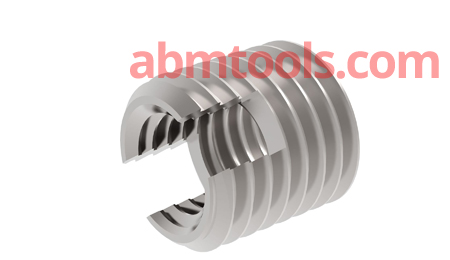

Self Taping Insert or Self Threaded Inserts are cylindrical metal bushings with internal and external threads and are specially designed to cut their own threads as they are being driven into a drilled hole. Self Taping Inserts provide permanent wear-resistant threads in a wide range of materials, from tough to tap, high strength steels to brittle plastics. By tapping its own thread, Self Tapping insert eliminates the need for pre-tapped holes.
FEATURES
Self tapping
No pre-tapping required
Very high pull-out resistance
Highly resistant to vibration, can withstand vibration without loosening
Produces high quality, permanent, wear-resistant threads
Unlimited thread re-usability
Protects expensive components from damage
Easy to install, standard taps can be used
Wide variety of styles to fit almost every application
MATERIALS
Zinc Plated – Yellow Chrome – Stainless Steel – Brass
METRIC
| Item Code No. Metric | 302 Self Taping With Cutting Slot | Length mm | External Thread | Min Bore Hole Depth through Holes -mm | Min Bore Hole Depth Blind Holes -mm |
|---|---|---|---|---|---|
| ABM-TRK-4900 | M2.5 x 0.45 | 6 | M4.5 x 0.5 | 6 | 8 |
| ABM-TRK-4901 | M3 x 0.5 | 6 | M5 x 0.5 | 6 | 8 |
| ABM-TRK-4902 | M3.5 x 0.6 | 8 | M6 x 0.75 | 8 | 10 |
| ABM-TRK-4903 | M4 x 0.7 | 8 | M6.5 x 0.75 | 8 | 10 |
| ABM-TRK-4904 | M5 x 0.8 | 10 | M8 x 1.0 | 10 | 13 |
| ABM-TRK-4905 | M6 x 1.0 | 12 | M9 x 1.0 | 14 | 17 |
| ABM-TRK-4906 | M6 x 1.0 | 14 | M10 x 1.5 | 14 | 17 |
| ABM-TRK-4907 | M8 x 1.25 | 15 | M12 x 1.5 | 15 | 18 |
| ABM-TRK-4908 | M10 x 1.5 | 18 | M14 x 1.5 | 18 | 22 |
| ABM-TRK-4909 | M12 x 1.75 | 22 | M16 x 1.5 | 22 | 26 |
| ABM-TRK-4910 | M14 x 2.0 | 24 | M18 x 1.5 | 24 | 28 |
| ABM-TRK-4911 | M16 x 2.0 | 22 | M20 x 1.5 | 22 | 27 |
| ABM-TRK-4912 | M18 x 2.5 | 24 | M22 x 1.5 | 24 | 29 |
| ABM-TRK-4913 | M20 x 2.5 | 27 | M26 x 1.5 | 27 | 32 |
| ABM-TRK-4914 | M22 x 2.5 | 30 | M26 x 1.5 | 30 | 36 |
| ABM-TRK-4915 | M24 x 3 | 30 | M30 x 1.5 | 30 | 36 |
UNC (Unified Coarse Thread)
| Item Code No. UNC | 302 Self Taping With Cutting Slot | Length mm | External Thread | Min Bore Hole Depth through Holes -mm | Min Bore Hole Depth Blind Holes -mm |
|---|---|---|---|---|---|
| ABM-TRK-4950 | 4 x 40 | 6 | M5 x 0.5 | 6 | 8 |
| ABM-TRK-4951 | 6 x 32 | 8 | M6 x 0.75 | 8 | 10 |
| ABM-TRK-4952 | 8 x 32 | 8 | M6.5 x 0.75 | 8 | 10 |
| ABM-TRK-4953 | 10 x 24 | 10 | M8 x 1.0 | 10 | 13 |
| ABM-TRK-4954 | 1/4 x 20 | 14 | M10 x 1.5 | 14 | 17 |
| ABM-TRK-4955 | 5/16 x 18 | 15 | M12 x 1.5 | 15 | 18 |
| ABM-TRK-4956 | 3/8 x 16 | 18 | M14 x 1.5 | 18 | 22 |
| ABM-TRK-4957 | 7/16 x 14 | 22 | M16 x 1.5 | 22 | 26 |
| ABM-TRK-4958 | 1/2 x 13 | 22 | M18 x 1.5 | 22 | 28 |
| ABM-TRK-4959 | 5/8 x 11 | 22 | M20 x 1.5 | 22 | 27 |
UNF (Unified Fine Thread)
| Item Code No. UNF | 302 Self Taping With Cutting Slot | Length mm | External Thread | Min Bore Hole Depth through Holes -mm | Min Bore Hole Depth Blind Holes -mm |
|---|---|---|---|---|---|
| ABM-TRK-5000 | 4 x 40 | 6 | M5 x 0.5 | 6 | 8 |
| ABM-TRK-5001 | 6 x 40 | 8 | M6 x 0.75 | 8 | 10 |
| ABM-TRK-5002 | 8 x 36 | 8 | M6.5 x 0.75 | 8 | 10 |
| ABM-TRK-5003 | 10 x 32 | 10 | M8 x 1.0 | 10 | 13 |
| ABM-TRK-5004 | 1/4 x 28 | 14 | M10 x 1.5 | 14 | 17 |
| ABM-TRK-5005 | 5/16 x 24 | 15 | M12 x 1.5 | 15 | 18 |
| ABM-TRK-5006 | 3/8 x 24 | 18 | M14 x 1.5 | 18 | 22 |
| ABM-TRK-5007 | 7/16 x 20 | 22 | M16 x 1.5 | 22 | 26 |
| ABM-TRK-5008 | 1/2 x 20 | 22 | M18 x 1.5 | 22 | 28 |
| ABM-TRK-5009 | 5/8 x 18 | 22 | M20 x 1.5 | 22 | 27 |
