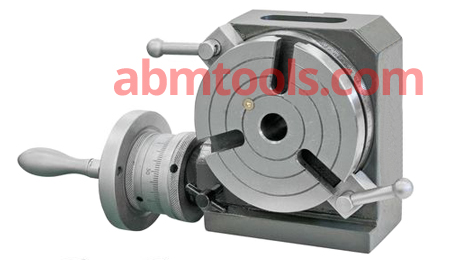

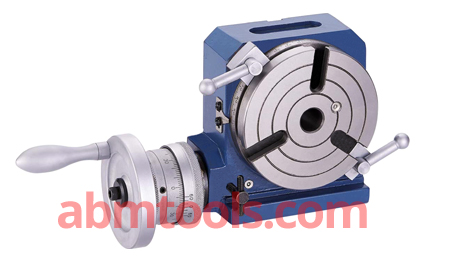

A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Some rotary tables allow the use of index plates for indexing operations, and some can also be fitted with dividing plates that enable regular work positioning at divisions for which indexing plates are not available.

Loading...

Description

• Center Bore MT-2
• Gear Ratio 90 : 1
• This Rotary Table is manufactured from Close Grained Graded Cast Iron
• Table Diameter 4-3/8″ (110 mm)
• Vertical Center Height 86 mm
• Rotary Table Can be used either Horizontally or Vertically.
• These tables has a totally ground finish which provides high precision and smooth rotation.



Item Code No.TypeTable Dia.Overall HeightT Slot Width
mm
Gear Ratio
ABM-VC-2590H&V4-3/8" / 110mm3-1/8" / 80mm17mm90:1
ABM-VC-2591Rotary Table + Clamping Kit
ABM-VC-2592Rotary Table + Dividing Plate Set
ABM-VC-2593Rotary Table + Dividing Plate Set + Tailstock

*  H&V Means  Horizontal & Vertical
