Description

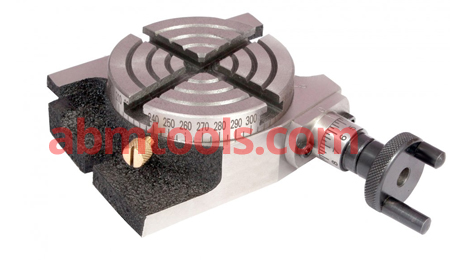

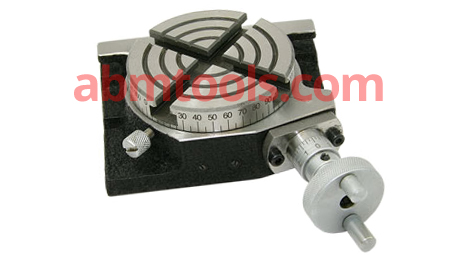

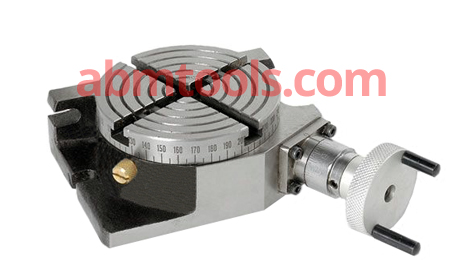

• Available Rotary Milling Table Plain and Horizontal & Vertical System.
• Available with and without indexing Device.
• Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations
• Horizontal and Vertical Rotary Table comes with 360 degree graduations.
• Features dual positive action locks with extra deep coolant channel.
• Table clamping surface are precision ground and cylindrical center bore concentric.
• Table Surface id accurately Ground and base of the body to ensure smooth Rotation.
| Item Code No. | Type | Table Dia. | Overall Height | T Slot Width mm | Gear Ratio |
|---|---|---|---|---|---|
| ABM-VC-2500 | H&V | 3" / 75mm | 1-3/4" / 45mm | 13mm | 36:1 |
| ABM-VC-2501 | Rotary Table + Clamping Kit | ||||

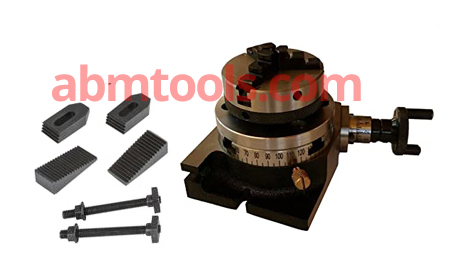

| ABM-VC-2502 | Rotary Table + 3 Jaw 65 mm Self Centering Lathe Chuck + Back Plate | ||||

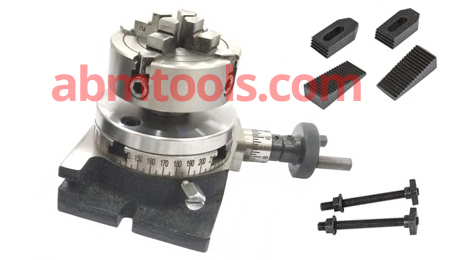

| ABM-VC-2503 | Rotary Table + 4 Jaw 70 mm Independent Lathe Chuck + Back Plate | ||||
* H&V Means Horizontal & Vertical
