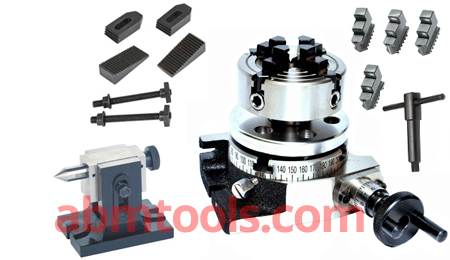

Rotary Table 4″ (100 mm) with Tailstock, Clamping Kit & Chuck

SET  CONTAINS  :
1.  Rotary Tables 4″ (100 mm)  (Item Code No  ABM-VC-2540)  – 1  No.
Chuck Diameter 4″ (100 mm)
Vertical Center Height 2-1/16″ (Approx. 51 mm)
Hand Wheel can be set to zero
Hand Wheel graduated in 10 min divisions
Calibrated in 5 min increment around the rim
36 : 1 ratio
Can be used both Horizontally & Vertically.
2.  Back Plate  – 1 No.
3.  Chuck   – 1 No.
      3  Jaw Self Centering 65 mm or 4  Jaw Independent 70mm

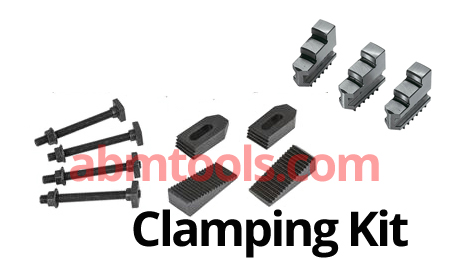

4.  Clamping Kit – M6 – 1 Set
       2 x Slotted Clamps (40 mm x 20 mm)
2 x 6 mm Studs 50 mm long with nuts
2 x Step Clamps 25 x 15 mm
Suitable Set of T Nuts, Studs and Clamps

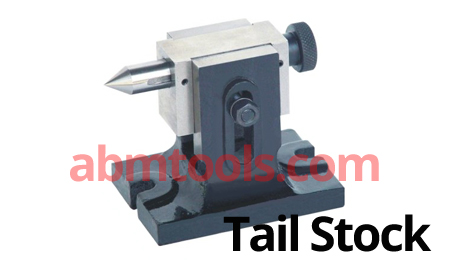

5.  Tailstock – 1 No.
This adjustable Tail Stock is suitable for all the 4″ (100 mm) Rotary Tables
Fully adjustable from 2-1/4″ – 3-1/2″
