Description
SET CONTAINS :

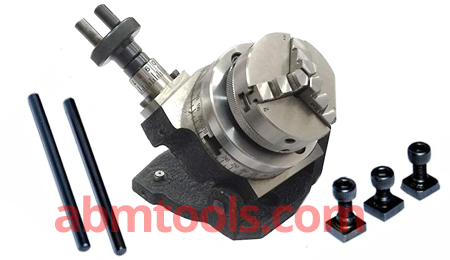

1. Rotary Tables 3″ (75 mm) (Item Code No ABM-VC-2520) – 1 No.
Worm Gear has 36 :1 ratio
The hand wheel is in 10 min divisions and can be set at 0
The table is calibrated in 5º increments around the rim.
2. Back Plate – 1 No.
3. Chuck – 1 No.
3 Jaw Self Centering 65 mm or 4 Jaw Independent 70mm
4. T Nuts – 3 Nos.
| Item Code No. | Description |
|---|---|
| ABM-VC-2810 | With 3 Jaw Self Centering Chuck 65 mm |
| ABM-VC-2811 | With 4 Jaw Independent Chuck 70 mm |
