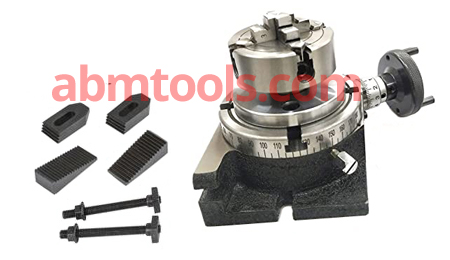

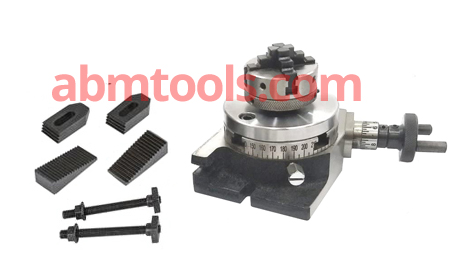

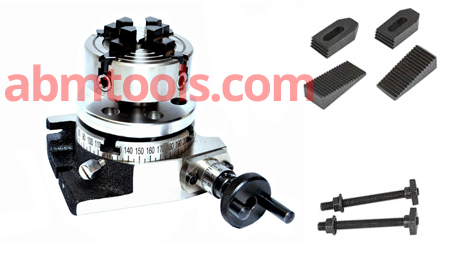

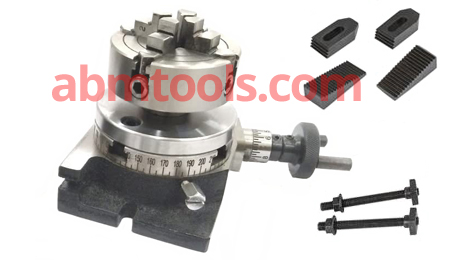

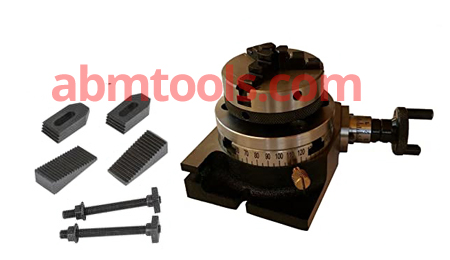

Rotary Table 3″ (75 mm) with 3 or 4 Jaws Chuck

SET  CONTAINS  :
1.   Rotary Tables 3″ (75 mm) (Item Code No  ABM-VC-2500)  – 1  No.
      Table height 45 mm (1-3/4″)
Table height with Chuck 95 mm
Worm Gear has 36 :1 ratio
The hand wheel is in 10 min divisions and can be set at 0
The table is calibrated in 5º increments around the rim.
2.  Precision Lathe Chuck  – 1  No.
Mounts smoothly over the backplate (provided)
3  Jaw Self Centering 65 mm or 4  Jaw Independent 70mm
3.   Clamping Kit (M6)  – 1  Set.
       2 x Slotted Clamps (40 mm x 20 mm)
2 x 6 mm Studs 50 mm long with nuts
2 x Step Clamps 25 x 15 mm
4.  Back Plate  – 1 No.
