Description
Made of steel. Perfect for 7 x 10″, 7 x 12″, 7 x 14″ mini lathe, such as Enco, Grizzly , Little Machine, Harbor Freight and many other brand
Wedge type tool posts are precision engineered to assure repeatability accuracy. Wedge type tool posts have the Maximum rigidity to get the chatter free performance
The tool post comes with a blank T-Nut plate, customers need to do some machining work to make it fit into their own specific lathe T- slot
Made from high quality, heat treated tool steel. All working parts hardened and precision ground.

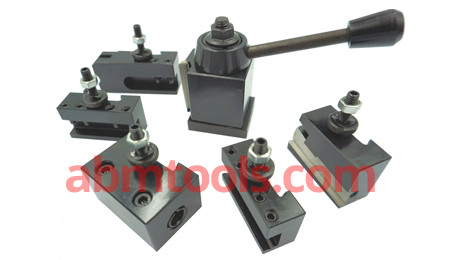

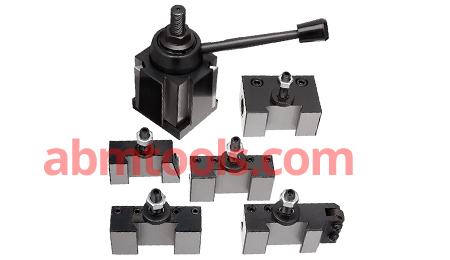

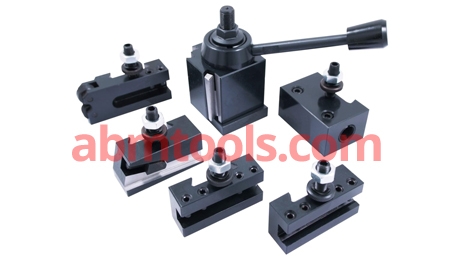

The set comprises of the following items:
Main Block
Turning and Facing Holder (Standard)
Boring Holder (O)
Boring Holder (V)
Cut off Holder / Parting Holder
Knurling Holder
| Item Code No. Spare Holder | Model No. | Block Size | For Lathe Swing | Set Includes the following |
|---|---|---|---|---|
| ABM-IMT-4750 | OXA | 1.75"x 1.75"x 2.5" | 6"-9" (150-230 mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 1/2"or 3/8" 1 Unit- Boring Holder (V) 13 mm 1 Unit- Cut Off Holder 1/2" |
| ABM-IMT-4751 | AXA | 2.5"x2.5"x3.5" | 7"-12" (180-300mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 5/8"or 3/4" 1 Unit- Boring Holder (V) 14 mm 1 Unit- Cut Off Holder 1/2" 1 Unit- Knurling Holder |
| ABM-IMT-4752 | BXA | -- | 10"-15" (250-375 mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 1/4"or 5/8" 1 Unit- Boring Holder (V) 7/8" 1 Unit- Cut Off Holder 11/16" 1 Unit- Knurling Holder |
| ABM-IMT-4753 | CXA | - | 13"-18" (325-450 mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 1/2"or 3/4" 1 Unit- Boring Holder (V) 1" 1 Unit- Cut Off Holder 3/4" 1 Unit- Knurling Holder |
| ABM-IMT-4754 | CA | - | 14"-20" (350-500 mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 1/2"or 1" 1 Unit- Boring Holder (V) 1-1/4" 1 Unit- Cut Off Holder 7/8" 1 Unit- Knurling Holder |
| ABM-IMT-4755 | DA | - | 17"-32" (425-800 mm) | 1 Unit- Main Block 2 Unit- Turning and Facing Holder (Standard) 1 Unit- Boring Holder (O) 3/4"or 1-1/4" 1 Unit- Boring Holder (V) 1"-9/16" 1 Unit- Cut Off Holder 1-1/8" 1 Unit- Knurling Holder |
