Description
Dimension in mm

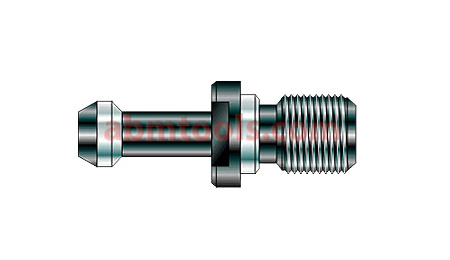

| Item Code No. | Suitable for Tool Shank MAS 403 BT | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | G | Ø° | ØA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABM-IMT-7530 | B 30 | 11 | 16.5 | 12.5 | 7 | 43 | 23 | 5 | 18 | 4 | M 12 | 60 | -- |
| ABM-IMT-7531 | B 30 | 11 | 16.5 | 12.5 | 7 | 43 | 23 | 5 | 18 | 4 | M 12 | 45 | -- |
| ABM-IMT-7532 | B 40 | 15 | 23 | 17 | 10 | 60 | 35 | 6 | 28 | 5 | M 16 | 60 | -- |
| ABM-IMT-7533 | B 40 | 15 | 23 | 17 | 10 | 60 | 35 | 6 | 28 | 5 | M 16 | 45 | -- |
| ABM-IMT-7534 | B 45 | 19 | 31 | 21 | 14 | 70 | 40 | 8 | 31 | 6 | M 20 | 60 | -- |
| ABM-IMT-7535 | B 45 | 19 | 31 | 21 | 14 | 70 | 40 | 8 | 31 | 6 | M 20 | 45 | -- |
| ABM-IMT-7536 | B 50 | 23 | 38 | 25 | 17 | 85 | 45 | 10 | 35 | 8 | M 24 | 60 | -- |
| ABM-IMT-7537 | B 50 | 23 | 38 | 25 | 17 | 85 | 45 | 10 | 35 | 8 | M 24 | 45 | -- |
| ABM-IMT-7538 | A 40 | 15 | 23 | 17 | 10 | 60 | 35 | 6 | 28 | 5 | M 16 | 60 | 4 |
| ABM-IMT-7539 | A 40 | 15 | 23 | 17 | 10 | 60 | 35 | 6 | 28 | 5 | M 16 | 45 | 4 |
| ABM-IMT-7540 | A 50 | 23 | 38 | 25 | 17 | 85 | 45 | 10 | 35 | 8 | M 24 | 60 | 6 |
