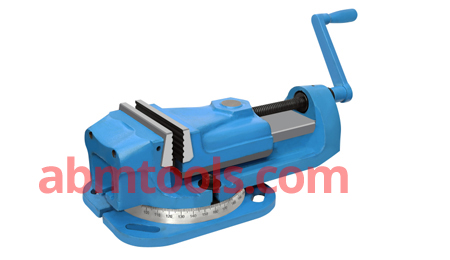

Description

• Rigid Material Vise Body of Ductile Iron (Unbreakable Body).
• Both jaws plates are in pull-down angle.
• This ensures Anti-Lift Clamping of the Workpiece.
• Trouble Free Performance.
• Accuracy in squareness within 0.02/100 MM
• Jaw Plates are made out of Tool Steel (45-50 HRC).
• Hardened & Ground Guide Ways.



Item code No.ABM-VC-11155
Size in Inches in mm6 Inch (150 mm)
Width of Jaws in mm165
Opening of Jaws in mm150
Depth of Jaws in mm56
Length Overall in mm550
Height Overall in mm175
Width Overall in mm270
Tenon Slot Size in mm20
Width of Slot for Clamping14
Weight Approx Kg.54
