Description

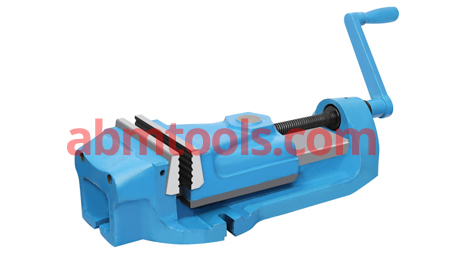

• Rigid Material Vise Body of Ductile Iron (Unbreakable Body).
• Both jaws plates are in pull-down angle.
• This ensures Anti-Lift Clamping of the Workpiece.
• Trouble Free Performance.
• Accuracy in squareness within 0.02/100 MM
• Jaw Plates are made out of Tool Steel (45-50 HRC).
• Hardened & Ground Guide Ways.
| Item code No. | ABM-VC-11150 |
|---|---|
| Size in Inches in mm | 6 Inch (150 mm) |
| Width of Jaws in mm | 165 |
| Opening of Jaws in mm | 150 |
| Depth of Jaws in mm | 56 |
| Length Overall in mm | 550 |
| Height Overall in mm | 135 |
| Width Overall in mm | 230 |
| Tenon Slot Size in mm | 20 |
| Width of Slot for Clamping | 14 |
| Weight Approx Kg. | 43 |
