Description

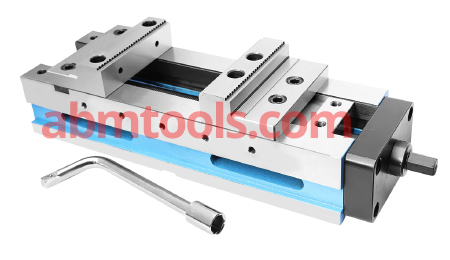

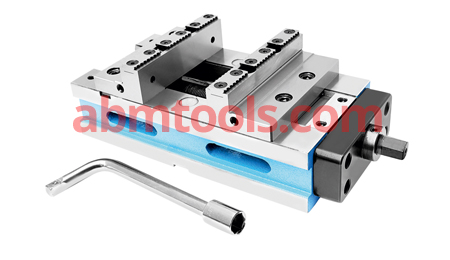

- Precision High Grip Machine Vices are compact, rigid & specially designed for Precision Milling, Grinding & CNC Operations.
- Unbreakable High Strength Ductile Iron Body.
- Grounded Top & Bottom.
- High-Quality Alloy Steel, Case Hardened HRC 60 ± 2 clamping jaws for high performance & longer life.
- Tenon & tenon slots are provided for effortless truing of vice on the machine table.
- Accuracy in parallelism & squareness within 0.02 / 100 mm.
- Interchangeable Jaw Plates are also available.
- Smooth & effortless handle movement to achieve high clamping force. (Max 5000 Kg.)
| Item Code No. | ABM-VC-11060 | ABM-VC-11061 |
|---|---|---|
| Size Inches | 6" | 6" |
| Width of Jaws mm | 150 | 150 |
| Opening of Jaws mm | 250 | 380 |
| Length of Jaws mm | 360 | 530 |
| Height Overall mm | 113 | 130 |
| Tenon Slot Size mm | 20 | 20 |
| Weight Approx Kg. | 22 Kg. | 38 Kg. |
