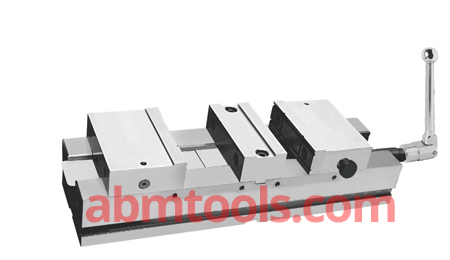

Fourth-generation vise with quick-change dovetailed jaw interface as standard equipment.

Loading...

Description

• Rigid Material Vise Body of Ductile Iron.
• Clamping force equalization same force to two workpiece in different size.
• Anti-lift mechanism ensure the workpiece does not lift during operation.
• Double clamp makes different size of workpieces can be clamped at the same time.
• Can be mounted Horizontally or Vertically.
• Fixed Center Jaw has a Machined Keyway for Accurate.
• Alignment and Setup.

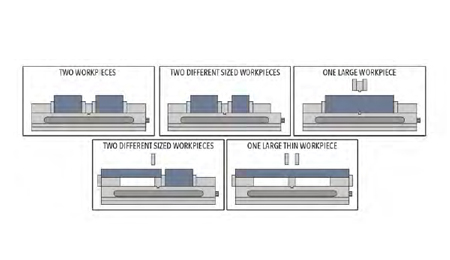

• 5 Different Workpiece Clamping Applications.
• Accuracy in Squareness within 0.02/100 MM.
• Hardened and Ground Guide Way.



Item code No.ABM-VC-11205
Size in Inches6 Inch (150 mm)
Width of Jaws mm152
Opening of Jaws
each size in mm
0-125
Max Opening mm0-310
Depth of Jaws mm45
Overall Length mm520
Overall Height mm127
Overall Width mm150
Tenon Slot Size mm20
Weight Approx Kg.50
