A small boring bar is inserted into one of the holes. The head can be shifted left or right with fine gradation by a screw, adjusting the diameter of the circle that the cutting tip swings through, thus controlling the hole size.

Loading...

Description

•  Machined from High grade steel with tool blocks hardened and ground.
•  Allows easy reading and adjustment.
•  Threaded back for interchangeable Shanks.
•  Ideal  for  Mill  or  Jig  Bore  Operations.
•  Very versatile and useful in any machine shop floor.
•  The construction of the head is so designed that it is very useful for making heavy  roughing cuts as well as more accurate finishing cuts.
•  Rigid designs and threaded interchangeable shanks for the boring head make it useful  for machines with different tapers.

Boring Heads have three major components:
1.   Boring head body
2.  Bar holder/insert holder
3.  Dial screw

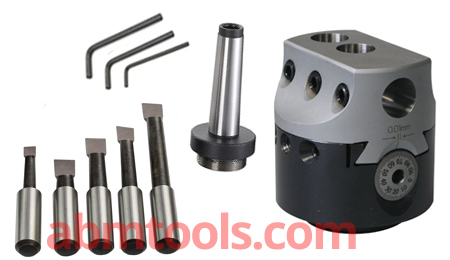

Boring Heads Kits 75mm / 3″  Consist of  :
1.  75mm / 3″ Boring Head  –  1  No.
2.  MT Shank –  1  No.
3.  5 Pcs Set 20mm (HSS Boring Tool Assorted Sizes or Carbide Brazed Boring Tools)  –  1  Pc.

Packed in attractive Wooden box Packing

Item Code No.
Metric
Item Code No.
Inches
StylesDescription
ABM-IMT-3145ABM-IMT-3151MT 2Kit With HSS Boring Tool
ABM-IMT-3146ABM-IMT-3152MT 2Kit With Carbide Brazed Boring Tool
ABM-IMT-3147ABM-IMT-3153MT 3Kit With HSS Boring Tool
ABM-IMT-3148ABM-IMT-3154MT 3Kit With Carbide Brazed Boring Tool
ABM-IMT-3149ABM-IMT-3155MT 4Kit With HSS Boring Tool
ABM-IMT-3150ABM-IMT-3156MT 4Kit With Carbide Brazed Boring Tool
