A small boring bar is inserted into one of the holes. The head can be shifted left or right with fine gradation by a screw, adjusting the diameter of the circle that the cutting tip swings through, thus controlling the hole size.

Loading...

Description

•  Machined from High grade steel with tool blocks hardened and ground.
•  Allows easy reading and adjustment.
•  Threaded back for interchangeable Shanks.
•  Ideal  for  Mill  or  Jig  Bore  Operations.
•  Very versatile and useful in any machine shop floor.
•  The construction of the head is so designed that it is very useful for making heavy  roughing cuts as well as more accurate finishing cuts.
•  Rigid designs and threaded interchangeable shanks for the boring head make it useful  for machines with different tapers.

Boring Heads have three major components:
1.   Boring head body
2.  Bar holder/insert holder
3.  Dial screw

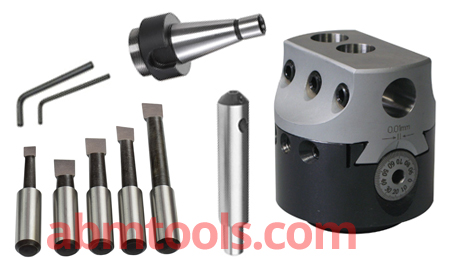

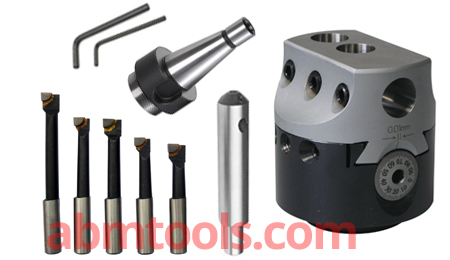

Boring Heads Kits 75mm / 3″  Consist of  :
1.  75mm / 3″ Boring Head  –  1  No.
2.  BT Shank –  1  No.
3.  5 Pcs Set 20mm (HSS Boring Tool Assorted Sizes or Carbide Brazed Boring Tools)  –  1  Pc.

Packed in attractive Wooden box Packing

Item Code No.DescriptionDescription
ABM-IMT-3170BT 30Kit With HSS Boring Tool
ABM-IMT-3171BT 30Kit With Carbide Brazed Boring Tool
ABM-IMT-3172BT 40Kit With HSS Boring Tool
ABM-IMT-3173BT 40Kit With Carbide Brazed Boring Tool
ABM-IMT-3174BT 50Kit With HSS Boring Tool
ABM-IMT-3175BT 50Kit With Carbide Brazed Boring Tool
