A small boring bar is inserted into one of the holes. The head can be shifted left or right with fine gradation by a screw, adjusting the diameter of the circle that the cutting tip swings through, thus controlling the hole size.

Loading...

Description

•  Machined from High grade steel with tool blocks hardened and ground.
•  Allows easy reading and adjustment.
•  Threaded back for interchangeable Shanks.
•  Ideal  for  Mill  or  Jig  Bore  Operations.
•  Very versatile and useful in any machine shop floor.
•  The construction of the head is so designed that it is very useful for making heavy  roughing cuts as well as more accurate finishing cuts.
•  Rigid designs and threaded interchangeable shanks for the boring head make it useful  for machines with different tapers.

Boring Heads have three major components:
1.   Boring head body
2.  Bar holder/insert holder
3.  Dial screw

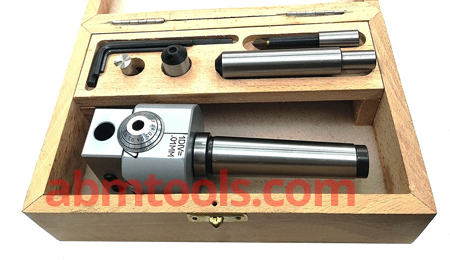

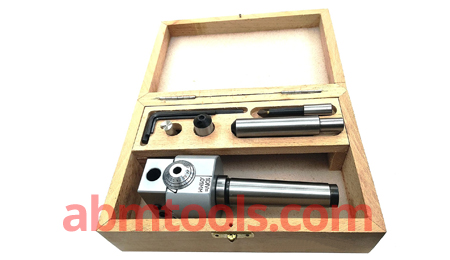

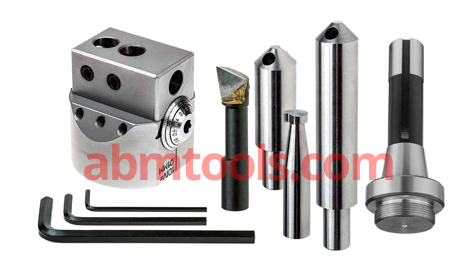

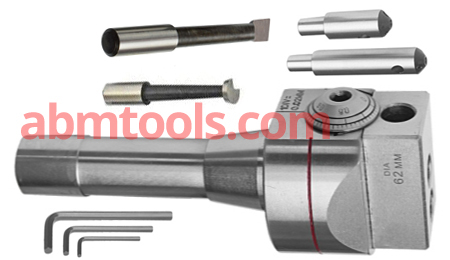

Boring Heads Kits 62mm  Consist of  :
1.  62mm Boring Head  –  1  No.
2.  Shank R8 or MT2 or MT3 or MT4 or ISO 30 or ISO 40 or ISO 50 or BT 30 or BT 40 or BT 50 –  1  No.
3.  12mm (HSS Boring Tool Assorted Sizes or Carbide Brazed Boring Tools)  –  1  Pc.
4.  LN Keys  –  2  Nos.
5.  Fly Cutter 45 Degree for 6 mm Round Tool Bit  –  1  Nos.

Packed in attractive Wooden box Packing

Item Code No.Shank
ABM-IMT-3125R8
ABM-IMT-3126MT 2
ABM-IMT-3127MT 3
ABM-IMT-3128MT 4
ABM-IMT-3129ISO 30
ABM-IMT-3130ISO 40
ABM-IMT-3131ISO 50
ABM-IMT-3132BT 30
ABM-IMT-3133BT 40
ABM-IMT-3134BT 50

While Placing order please mention  with HSS Boring Tool or Carbide Brazed Boring Tools
