Parting uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length. It is normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck. Other uses include things such as cutting the head off a bolt.

Loading...

Description

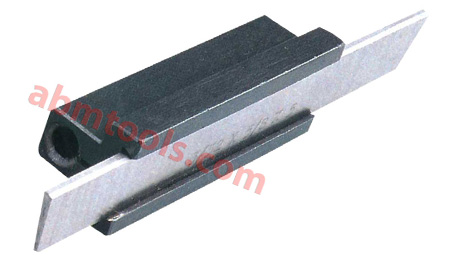

QUICK  CLAMP  PARTING  TOOL  HOLDER  /  CUT  OFF  TOOL  BLOCKS

• One Piece construction with 100% Clamping power.
• Can be used both on Front and Rear Tool Post of the Cross Line.
• Holds and guides the Beveled blade in a way that it ensures equal  clearance on both sides.
• Supplied with and without HSS / Cobalt Cut Off Blades.
• Blade also available separately.
• Provided with Allen Keys.
• Parting Tool Holders uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length.



Item Code No.Blade Size (w x h x l)Body Size (Shank x Width x length)
ABM-IMT-65803/32 x 3/8 x 42-1/8 x 15/16 x 1
ABM-IMT-65813/32 x 1/2 x 42-1/8 x 1-3/16 x 1-1/8
ABM-IMT-65823/32 x 5/8 x 43-1/2 x 1-1/2 x 1-7/16
ABM-IMT-65831/8 x 3/4 x 53-1/2 x 1-1/2 x 1-1/4
