Parting uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length. It is normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck. Other uses include things such as cutting the head off a bolt.

Loading...

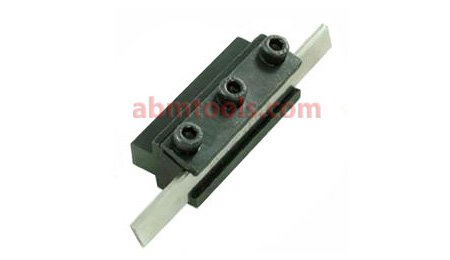

Description

• Case-hardened and ground
• Positive locking ensures longer blade life
• Firm and positive clamping force by screws on top of mounting plate.
• Parting Tool Holder uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length.
• Normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck.
• Other uses include things such as cutting the head off a bolt.
• Firm and positive clamping force by screws on top of mounting plate.



Item Code No.Size  of Holder
Shank x Width x length
Size of Cut Off Blade
HSS / Cobalt
ABM-IMT-66303/8″ x 3/4″ x 2-3/16″3/32” x 3/8” x 4”
ABM-IMT-66311/2” x 3/4” x 2-3/16”3/32” x 1/2” x 4”
ABM-IMT-66321/2” x 3/4” x 2-3/16”3/32” x 5/8” x 4”
ABM-IMT-66331/2” x 1” x 2-3/16”1/8” x 3/4” x 6”
