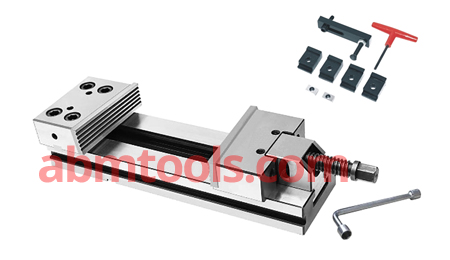

Description
- Made from High Quality Alloy Steel
- Accuracy in Squareness 0.01/100 MM
- Case Hardened HRC 60 ±2 TO give maximum rigidity, high performance & no wear .
- It Can be used in multiple style.
- Both Jaws plates are in pull-down angle ,this ensures anti-lift clamping of the workpiece .
- It is Low Profile.
- Supplied with stopper for fast Production.
| Item Code No. | ABM-VC-11190 | ABM-VC-11191 | ABM-VC-11192 |
|---|---|---|---|
| Size Inches | 4" | 6" | 8" |
| Width of Jaws mm | 100 | 150 | 200 |
| Opening of Jaws mm | 130 | 200 | 300 |
| Depth of Jaws mm | 30 | 50 | 60 |
| Length Overall mm | 325 | 420 | 555 |
| Height Overall mm | 71 | 98 | 118 |
| Width Overall mm | 102 | 150 | 203 |
| Tenon Slot Size mm | 16 | 16 | 16 |
| Weight Approx Kg. | 10 Kg. | 26 Kg. | 50 Kg. |
