Description

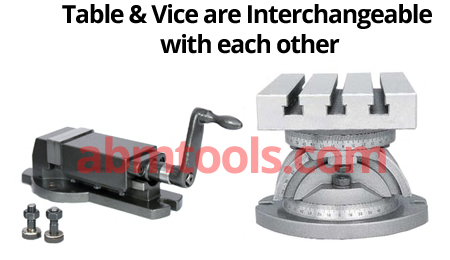

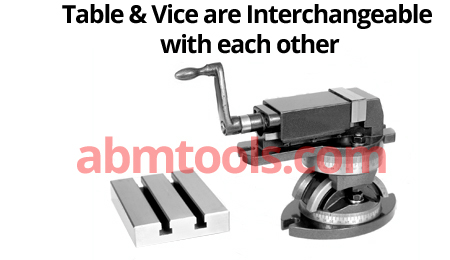

• Multi purpose 2 way axis Interchangeable machine modular vice cum slotted table.
• Robust construction manufactured from closed grain high tensile seasoned cast iron.
• Used for milling, shaping, drilling, grinding etc.
• This vice can be replaced by t-slot table provided in the set.
• Tilting movement 0-45°
• Horizontal movement 0-90°
• Fixed rotary base provide with 360° rotation.
• Jaws are hardened and ground.
Contains : Set of 3 pcs.
Vice – 1 Unit
Revolving Base – 1 Unit
Tee Slotted Table – 1 Unit
| Item Code No. | Vice Jaw Width | Vice Jaw Opening | Vice Jaw Depth | Table Size Inches | Table Size mm |
|---|---|---|---|---|---|
| ABM-VC-11610 | 2" (50mm) | 2" (50mm) | 1" (25mm) | 5 x 4 x 7/8 | 125x100x22 |
| ABM-VC-11611 | 3" (75mm) | 3" (75mm) | 1-1/4" (32mm) | 8 x 6 x 1-1/8 | 200x150x28 |
| ABM-VC-11612 | 4" (100mm) | 4" (100mm) | 1-1/2" (38mm) | 10 x 8 x 1-9/16 | 250x200x40 |
