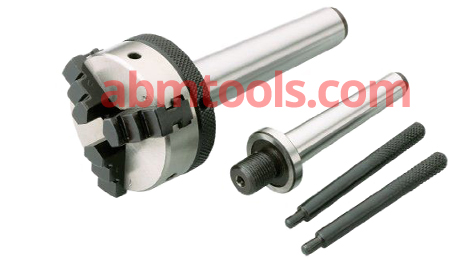

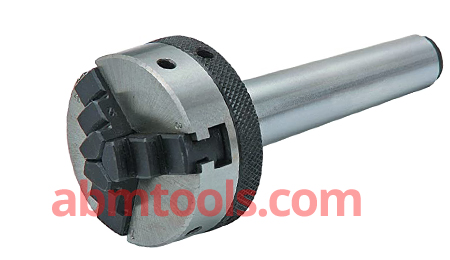

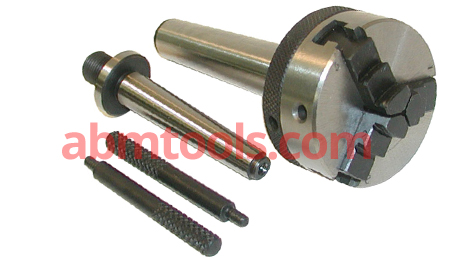

Tapered shank Three reverse stepped jaws Precision machined chuck and jaws Durable steel construction

Loading...

Description

• Self Centering Scroll Type Mini Lathe Chuck.
• Supplied With suitable Wrenches.
• Threaded Shanks are Interchangeable.



Item Code No.Chuck Dia.
mm
No. of
Jaws
Thread
Size
ShankDrawbar
mm
ABM-IMT-8415503M14 x1MT1M6
ABM-IMT-8416503M14 x1MT2M10
ABM-IMT-8417503M14 x1MT3M12
ABM-IMT-8418504M14 x1MT1M6
ABM-IMT-8419504M14 x1MT2M10
ABM-IMT-8420504M14 x1MT3M12
ABM-IMT-8421653M14 x1MT1M6
ABM-IMT-8422653M14 x1MT2M10
ABM-IMT-8423653M14 x1MT3M12
ABM-IMT-8424654M14 x1MT1M6
ABM-IMT-8425654M14 x1MT2M10
ABM-IMT-8426654M14 x1MT3M12

Categories

MADE TO ORDER

CUSTOM DESIGN TOOLS
CUSTOMER’S BRANDING
DESIRED PACKING
GLOBAL SPEEDY DELIVERY

RELATED PRODUCTS

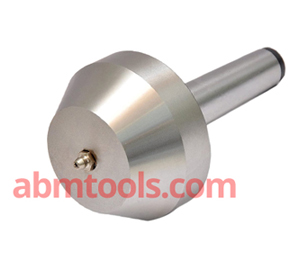

Bevel Revolving Tube Pipe Centers
Bevel Revolving Tube Pipe Centers
The tube pipe center fits tailstocks with Morse taper  spindles and...

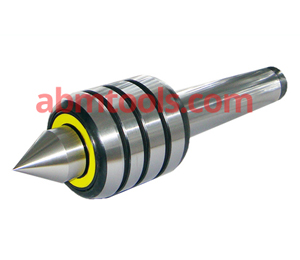

Slow Speed Revolving Center - Live Center
Slow Speed Revolving Center – Live Center
A live center or revolving center is constructed so that the...

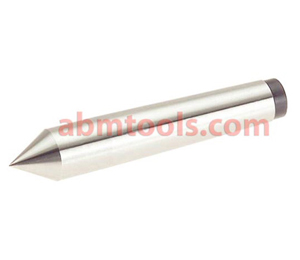

dead center lathe centre
