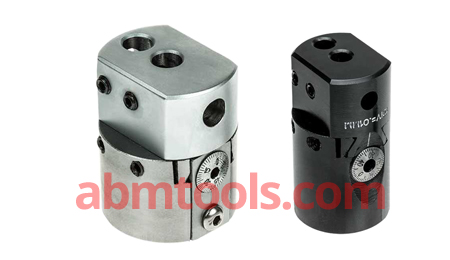

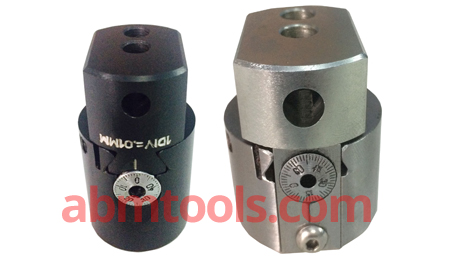

A small boring bar is inserted into one of the holes. The head can be shifted left or right with fine gradation by a screw, adjusting the diameter of the circle that the cutting tip swings through, thus controlling the hole size.

Loading...

Description

•  Machined from High grade steel with tool blocks hardened and ground.
•  Non-Reflecting Satin Chrome Body allows easy reading and adjustment.
•  Threaded back for interchangeable Shanks.
•  Ideal  for  Mill  or  Jig  Bore  Operations.
•  Very versatile and useful in any machine shop floor.
•  The construction of the head is so designed that it is very useful for making heavy  roughing cuts as well as more accurate finishing cuts.
•  Rigid designs and threaded interchangeable shanks for the boring head make it useful  for machines with different tapers.

Boring Heads have three major components:
1.   Boring head body
2.  Bar holder/insert holder
3.  Dial screw

Metric Sizes
Item Code No.
Head Dia.
mm
Mounting
Thread
Boring Tool
Dia. mm
Center Dist. B/W
Holes mm
Min Bore
mm
Max Bore
mm
ABM-IMT-479530M14 x 1.069645
ABM-IMT-479638M14 x 1.0811860
