Description
• This boring head has an excellent wide base design and high quality ensuring long life and rigidity even when it is used in an offset position.
• The screw is hardened and ground which guarantees long life and trouble free use.
• An ideal product for mill or jig bore operations.
• interchangeable shanks of the heads make it adaptable for use on different machines.
Item Code no. ABM-IMT-4890

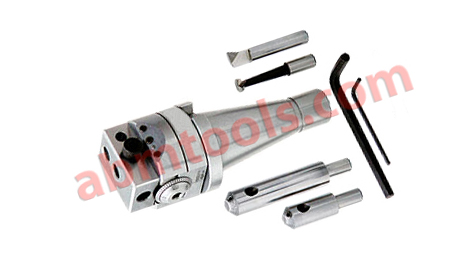

The complete set consists of the following
• Boring Head 62 mm.
• ISO40 Shank.
• 10 mm HSS Boring Tool.
• 10 mm Carbide Brazes Boring Tool.
• Fly Cutter 41 mm Overall Length. 45º Hole to Hold 6 mm HSS Round Tool Bit
• Fly Cutter 75 mm Overall Length. 45º Hole to Hold 6 mm HSS Round Tool Bit
• 2 Pc Hex Keys
Item Code no. ABM-IMT-4895
The complete set consists of the following
• Boring Head 80 mm.
• ISO40 Shank.
• 16 mm HSS Boring Tool.
• 16 mm Carbide Brazes Boring Tool.
• Fly Cutter 62 mm Overall Length. 45º Hole to Hold 6 mm HSS Round Tool Bit
• Fly Cutter 93 mm Overall Length. 45º Hole to Hold 8 mm HSS Round Tool Bit
• 2 Pc Hex Keys
| Item Code No. | Boring Head Diameter | Overall Length | Boring Bar Hole | Centre Distance between Hole | Cross Hole | Slide Radial Travel | Min Bore | Max Bore | Mounted Thread |
|---|---|---|---|---|---|---|---|---|---|
| ABM-IMT-4890 | 62 | 52 | 10 | 24 | 10 | 10 | 10 | 10 | 16 x 1.5 |
| ABM-IMT-4895 | 80 | 40 | 16 | 40 | 20 | 20 | 16 | 16 | 20 x 1.5 |
