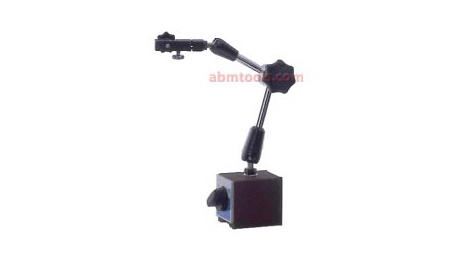

Magnetic Base – High Power – Flexible Arm
Esp
Soporte Magnetico – Alta Potencia
Fr
Base Magnétique
De
Magnet-Messstativ
• Magnetic base is capable of reaching every possible position – even upside down.
• It is an auxiliary tool for any general measurement and helps to increase precision and working efficiency.
• Articulated Arm Style Alnico Magnetic Base, Positions and Locks easily.
• Includes ON/OFF switch and central locking knob to tighten both arms.
• Includes two ball joints and one central cylindrical joint.
• Dial gage holder includes fine adjustment and full 360 Degree Swivel.
• Clamping system suitable for dial gauges with stem of 1/4”, 5/16” and 3/8” and dovetail indicators
• Magnetic pull approx. 60 kg. (130 LBS)
| Item Code No. | Overall Height Inch | Overall Height mm | Base Dimension l x w x h inch | Base Dimension l x w x h mm |
|---|---|---|---|---|
| ABM-IMT-5560 | 14″ | 335 | 2-1/2 x 1-7/8 x 2-1/8 | 63 x 48 x 55 |
