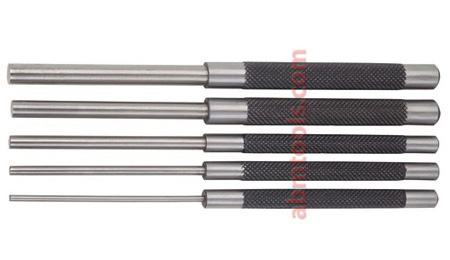

Drive pin punch are used for driving pins into or out of a workpiece. Drive Pin Punch is well proportioned, hardened, properly tempered, nicely finished, and have a knurled finger grip. Each punch has the size stamped on the head.

Loading...

Description

• Drive Pin Punches are used for driving out and removing already loosened pins & keys after initial movement by a solid or starting punch.
• Two piece construction allows the pin to have a separate hardness from the body which prevents “peening” and also ensures complete straightness over such a long length.
• These round shank pin punches have clean and well cut knurling which provides positive, non slip grip.
• Two piece construction with a 3.3/4″ (90 mm) long pin
• Drive Pin Punches are made from Tool Steel, Hardened and  Tempered.

• Knurled body for easy grip and are in black oxidized finish.
• Total length 8” (Body length 4-1/2” and Drive Pin Section length  3-1/2”).
• Heavy body dia.

• Available in individual sizes and also in a set of 5 in attractive  plastic pouches.



Item Code No.Tip Dia. InchTip Dia. mmBody Dia. InchBody Dia. mm
ABM-PN-98251/83.29/1614.0
ABM-PN-98263/164.89/1614.0
ABM-PN-98271/46.39/1614.0
ABM-PN-98285/168.09/1614.0
ABM-PN-98293/89.59/1614.0

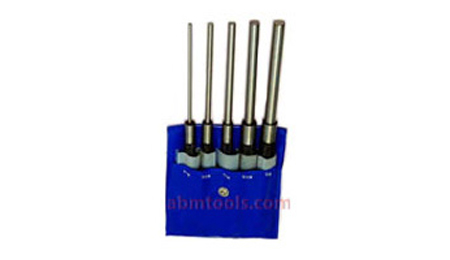

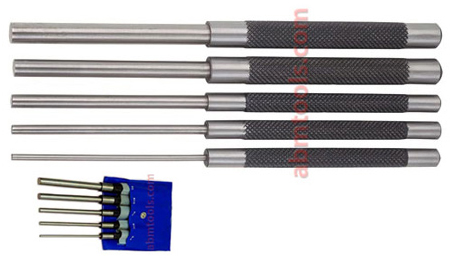

ABM-PN-9830Set of 5 Long Drive Pin Punches in a  Plastic Pouch consisting of 1/8”,  3/16”, 1/4”,  5/16” and 3/8”
