CNC lathes use this type of center almost exclusively and they may be used for general machining operations as well. Spring-loaded live centers are designed to compensate for center variations, without damage to the work piece or center tip. This assures the operator of uniform constant tension while machining.

Loading...

Description

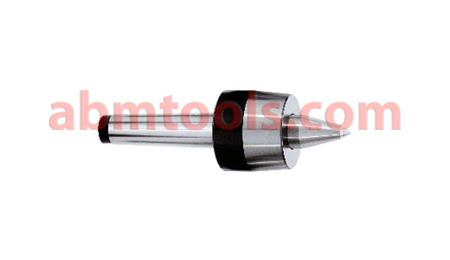

Live Center / Revolving Center – High Precision with Extended Nozzle

•  This center can be used on all CNC lathes, has a point angle of  60 degrees with double angular contact bearing, thrust bearing  and needle roller bearing at the end of point in the shank.
• The extended point gives extra tool clearance for safe approach of the tool holder and lathe tools which is often needed on  CNC lathes.
•  Concentricity within 0.005 mm.
•  Bearings are protected by a neoprene seal for longer life.
•  Consists of Triple Bearings.



Item Code No.
Carbide Point
Item Code No.
Plain
Morse
Taper
Max RPMWork Pc Weight
ABM-IMT-4360ABM-IMT-4364MT23000200
ABM-IMT-4361ABM-IMT-4365MT33500350
ABM-IMT-4362ABM-IMT-4366MT43500500
ABM-IMT-4363ABM-IMT-4367MT52500700
