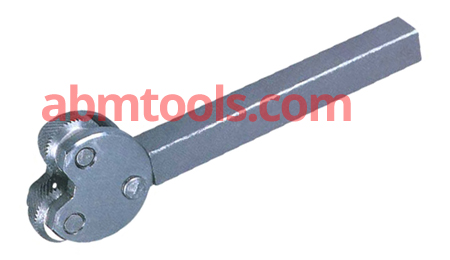

Knurling Tool Holders - Pivot Head (Two Knurl Wheels)

Knurling is a manufacturing process, typically conducted on a lathe, whereby a pattern of straight, angled or crossed lines is cut or rolled into the material. Self-centering Knurling Tool Holder features a knurling head that rotates within a 40 degree arc so equal pressure is automatically applied to both wheels.

Categories: Knurling Tools Holders, Lathe Tools & Accessories, Tool Holders & Boring Bars Tags: diamond knurling tool, knurling tool, knurling tool holder, Knurling Tool Holders - Pivot Head (Two Knurl Wheels), Pivot Head Type Knurling Tool, Self Adjusting, straight pattern knurling tool

Description

Description

PIVOT HEAD TYPE KNURLING TOOL

• Knurls are Hob Cut from High Speed Steel and Heat Treated.
• Two knurls Tool is generally provided with medium knurls but other knurls can also be provided if required.
• Machined ground steel in Shiny Black Finish.
• Replacement knurls are offered as a complete spare set for knurling Tools.
• Available with Tool Steel Knurls & HSS Knurls.

Item Code No.	Holder Size Inch	Holder Size mm	Size of Knurls Inch	Size of Knurls mm	Knurl Pattern
ABM-IMT-6531	1/2 x 1/2 x 4-1/2	12.7 x 12.7 x 115	3/4 x 3/8 x 1/4	19 x 9.5 x 6.35	Medium
ABM-IMT-6532	1/2 x 1/2 x 4-1/2	12.7 x 12.7 x 115	3/4 x 1/4 x 1/4	19 x 6.35 x 6.35	Medium
ABM-IMT-6533	5/8 x 5/8 x 4-1/2	16 x 16 x 115	3/4 x 3/8 x 1/4	19 x 9.5 x 6.35	Medium
ABM-IMT-6534	3/4 x 3/4 x 5	19 x 19 x 125	1 x 3/8 x 1/4	25 x 9.5 x 6.35	Medium

While Placing order please mention Tool Steel Knurls or HSS Knurls
