Description

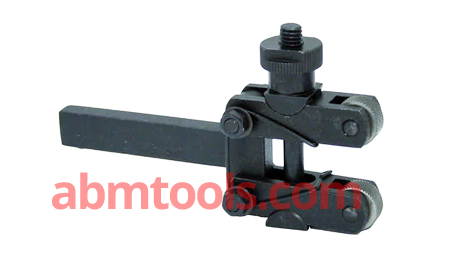

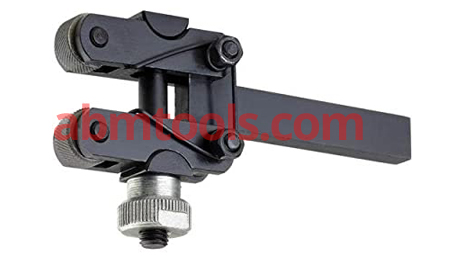

CLAMP TYPE KNURLING TOOL WITH KNOB
• Suitable for Mini Lathe Machine, Small lathe Machine and Medium size lathes.
• Adjustable Spring loaded clamp type knurling type.
• With medium diamond pattern knurls.
• Tool Steel / HSS Knurl LH and RH Medium.
• Pressure is applied by turning screw instead of the lathe cross slide.
• Helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool.
• Self adjusting head automatically adjust to center height.
| Item Code No. | Holder Size Inch | Holder Size mm | Size of Knurls Inch | Size of Knurls mm | Working Capacity Inch | Working Capacity Inch |
|---|---|---|---|---|---|---|
| ABM-IMT-6522 | 5/8 x 3/8 x 3 | 16 x 9.5 x 75 | 3/4 x 3/8 x 1/4 | 19 x 9.5 x 6.35 | 1/8 - 1 | 3 - 25 |
| ABM-IMT-6523 | 3/8 x 3/8 x 5-3/4 | 9.5 x 9.5 x 145 | 3/4 x 3/8 x 1/4 | 19 x 9.5 x 6.35 | 1/8 -1 | 3 - 25 |
While Placing order please mention Tool Steel Knurls or HSS Knurls
