Parting uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length. It is normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck. Other uses include things such as cutting the head off a bolt.

Loading...

Description

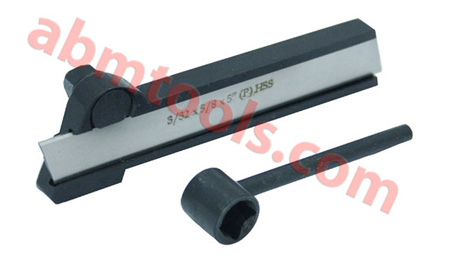

CUT  OFF  HOLDER / PARTING  TOOL  HOLDER

• Accurately machined and ground finish in black oxidised.
• Supplied with wrench but without tool bit.
• Series ST (straight), LT (Left) and RT (Right).
• While placing order, please specify for ST, LT or RT holder.
• Heat Treated Hardened Body.
• Support the blade over a wide area, reducing chance of  blade breakage.
• Provided with one wrench.



Item Code No.Holder Size
Inches
Holder Size
mm
Blade Size
Inches
Blade Size
mm
ABM-IMT-65615/16" x 9/16" x 3-1/2"8 x 14 x 901/16" x 5/16"1.5 x 8
ABM-IMT-65625/16" x 3/4" x 4-1/2"8 x 19 x 1143/32" x 1/2"2.4 x 12.7
ABM-IMT-65633/8" x 7/8" x 5"9.5 x 22 x 1253/32" x 5/8"2.4 x 16
ABM-IMT-65641/2" x 1-1/8" x 6"12.7 x 28 x 1501/8" x 3/4"3 x 19
ABM-IMT-65655/8" x 1-3/8" x 7"16 x 35 x 1751/8" x 7/8"3 x 22
ABM-IMT-65663/4" x 1-5/8" x 8"19 x 41 x 2003/16" x 1"5 x 25
ABM-IMT-65677/8" x 1-3/4" x 9"22 x 45 x 2253/16" x 1-1/8"5 x 28
ABM-IMT-65681" x 2" x 10"25 x 50 x 2501/4" x 1-1/4"6.35 x 31.75
While placing order, please specify for ST, LT or RT holder
