Description

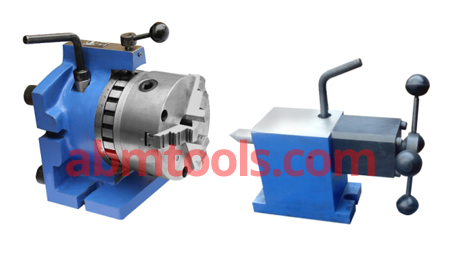

• Entire range of horizontal, vertical indexed milling operations can be done with our range of products Job Clamping is fast, indexing is quick thereby increasing production efficiency.
• Indexing Fixture models covers the advantage of conventional Dividing Head and Rotary Table put together.
• Movable Parts are hardened & Ground for long life Indexing accuracy is precise and products can be used on surface grinding also.
• Combination of ball bearings and taper roller bearings on jig bored holes for accurate & easy rotation.
• Tail Stock with lead screw movement is provided for center support of long shaft I jobs.
• Tail Stock Center is sliding in hardened and accurately ground bushes.
• In most models, 24 indexing positions are provided.
• There is also a graduated collar with 1 Degree least count which facilitates odd degree indexing also.
• With all these additional advantages, fixtures are priced much lower than conventional dividing head or rotary table.
While Placing Order Please mention :
• With Chuck & With Tail Stock.
• With Chuck & Without Tail Stock.
| Item Code No. | ABM-VC-11350 | ABM-VC-11351 | ABM-VC-11352 | ABM-VC-11353 | ABM-VC-11354 |
|---|---|---|---|---|---|
| Length - mm | 200 | 200 | 200 | 225 | 225 |
| Width - mm | 110 | 110 | 110 | 140 | 140 |
| Height - mm | 185 | 185 | 185 | 240 | 240 |
| Standard Indexing Positions | 24 | 24 | 24 | 24 | 24 |
| Approx Weight Kg. | 24 | 25 | 30 | 45 | 50 |
| Center Height | 85 | 85 | 85 | 120 | 140 |
| Chuck Details | 80 mm 3 Jaw Chuck | 100 mm 3 Jaw Chuck | 125 mm 3 Jaw Chuck | 160 mm 3 Jaw Chuck | 200 mm 3 Jaw Chuck |
| Indexing Accuracy | 0.03 15 s | 0.03 15 s | 0.03 15 s | 0.03 15 s | 0.03 15 s |
