Description

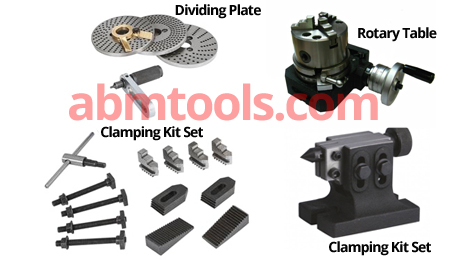

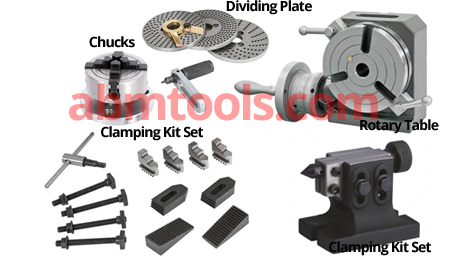

SET CONTAINS :
1. Rotary Tables 4-3/8″ (110 mm) (Item Code No ABM-VC-2590) – 1 No.
Table Diameter 4-3/8″ (110 mm)
Rotary Table Can be used either Horizontally or Vertically.
Table has a height of 3″ (75 mm)
Center Bore MT-2
Gear Ratio 90 : 1
This Rotary Table has three 6 mm T- Slots
These tables has a totally ground finish which provides high precision and smooth rotation.

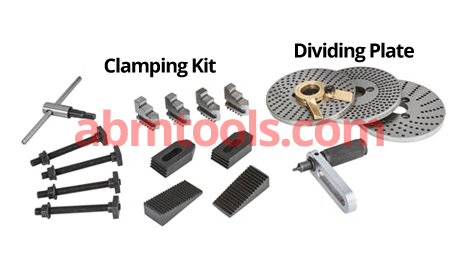

2. Clamping Kit – M6 – 1 Set
This set comprises 4 x T Nuts with matching 3″ Studs and Nuts
2 x 2″ Stepped Clamps
2 x 1-3/4″ Slotted Step Clamps
3. Tailstock – 1 No.
Center Height form 80 to 110mm
Base Size 130 x 95 mm
A substantially made Tailstock with center height adjustable over the range 80 to 110 mm.
The base size is 130 x 95 mm and there are 15 mm wide slots at the two ends for securing it to the machine table.
4. Dividing Plate Set – 1 Set.
This excellent dividing attachment can easily be fitted to the HV4 Rotary Table.
A Plate 15, 16, 17, 18, 19, 20
B Plate 21, 23, 27, 29, 31, 33
C Plate 37, 39, 41, 43, 47, 49
Also included are all necessary screw, washers and handle etc.
5. Chuck – 1 No.
3 Jaw Self Centering 65 mm or 4 Jaw Independent 70mm
| Item Code No. |
|---|
| ABM-VC-2830 |
