A clamp that fixes a workpiece to a lathe. A lathe dog, also known as a lathe carrier, is a device that clamps around the workpiece and allows the rotary motion of the machine’s spindle to be transmitted to the workpiece.

Loading...

Description

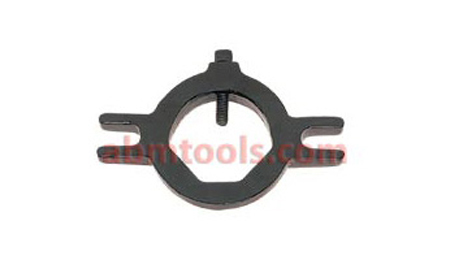

•  Carriers for grinding machines and light lathes.
•  Made of malleable iron.
•  Shiny Black finish.



Item Code No.Capacity InchCapacity mm
ABM-IMT-44901/4”6
ABM-IMT-44913/8”9
ABM-IMT-44921/2”12
ABM-IMT-44935/8”16
ABM-IMT-44943/4”19
ABM-IMT-44951”25
ABM-IMT-44961-1/4”30
ABM-IMT-44971-1/2”38
ABM-IMT-44981-3/4”44
ABM-IMT-44992”50
ABM-IMT-45002-1/2”63
ABM-IMT-45013”75
ABM-IMT-45023-1/2”90
ABM-IMT-45034”100
