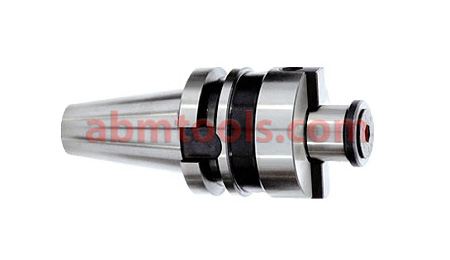

Description
• Form A & AD is without Coolant holes through flanges.
• Form B is with Coolant holes through flanges.
Dimension in mm
Item Code No. | Type | D | D | L | L1 | G | G1 |
---|---|---|---|---|---|---|---|
ABM-IMT-7350 | SK 30 / FMB 16 x 045 | 16 | 40 | 45 | 17 | M 12 | M 8 |
ABM-IMT-7351 | SK 30 / FMB 22 x 047 | 22 | 45 | 47 | 19 | M 12 | M 10 |
ABM-IMT-7352 | SK 30 / FMB 27 x 050 | 27 | 63 | 50 | 21 | M 12 | M 12 |
ABM-IMT-7353 | SK 40 / FMB 22 x 055 | 22 | 45 | 55 | 19 | M 16 | M 10 |
ABM-IMT-7354 | SK 40 / FMB 27 x 060 | 27 | 63 | 60 | 21 | M 16 | M 12 |
ABM-IMT-7355 | SK 40 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 16 | M 12 |
ABM-IMT-7356 | SK 40 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 16 | M 16 |
ABM-IMT-7357 | SK 40 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 16 | M 16 |
ABM-IMT-7358 | SK 40 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 16 | M 20 |
ABM-IMT-7359 | SK 40 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 16 | M 20 |
ABM-IMT-7360 | SK 50 / FMB 27 x 045 | 27 | 63 | 45 | 21 | M 24 | M 12 |
ABM-IMT-7361 | SK 50 / FMB 27 x 090 | 27 | 63 | 90 | 21 | M 24 | M 12 |
ABM-IMT-7362 | SK 50 / FMB 27 x 150 | 27 | 63 | 150 | 21 | M 24 | M 12 |
ABM-IMT-7363 | SK 50 / FMB 32 x 060 | 32 | 78 | 60 | 24 | M 24 | M 16 |
ABM-IMT-7364 | SK 50 / FMB 32 x 090 | 32 | 78 | 90 | 24 | M 24 | M 16 |
ABM-IMT-7365 | SK 50 / FMB 40 x 060 | 40 | 90 | 60 | 27 | M 24 | M 20 |
ABM-IMT-7366 | SK 50 / FMB 40 x 075 | 40 | 90 | 75 | 27 | M 24 | M 20 |
ABM-IMT-7367 | SK 50 / FMB 40 x 105 | 40 | 90 | 105 | 27 | M 24 | M 20 |
